House of RAMERK · Volume I

RPR-003
Mahlamäe
tn 3

Building Archive
Rapla linn · Rapla vald
Facade Thermal Renovation
Completed

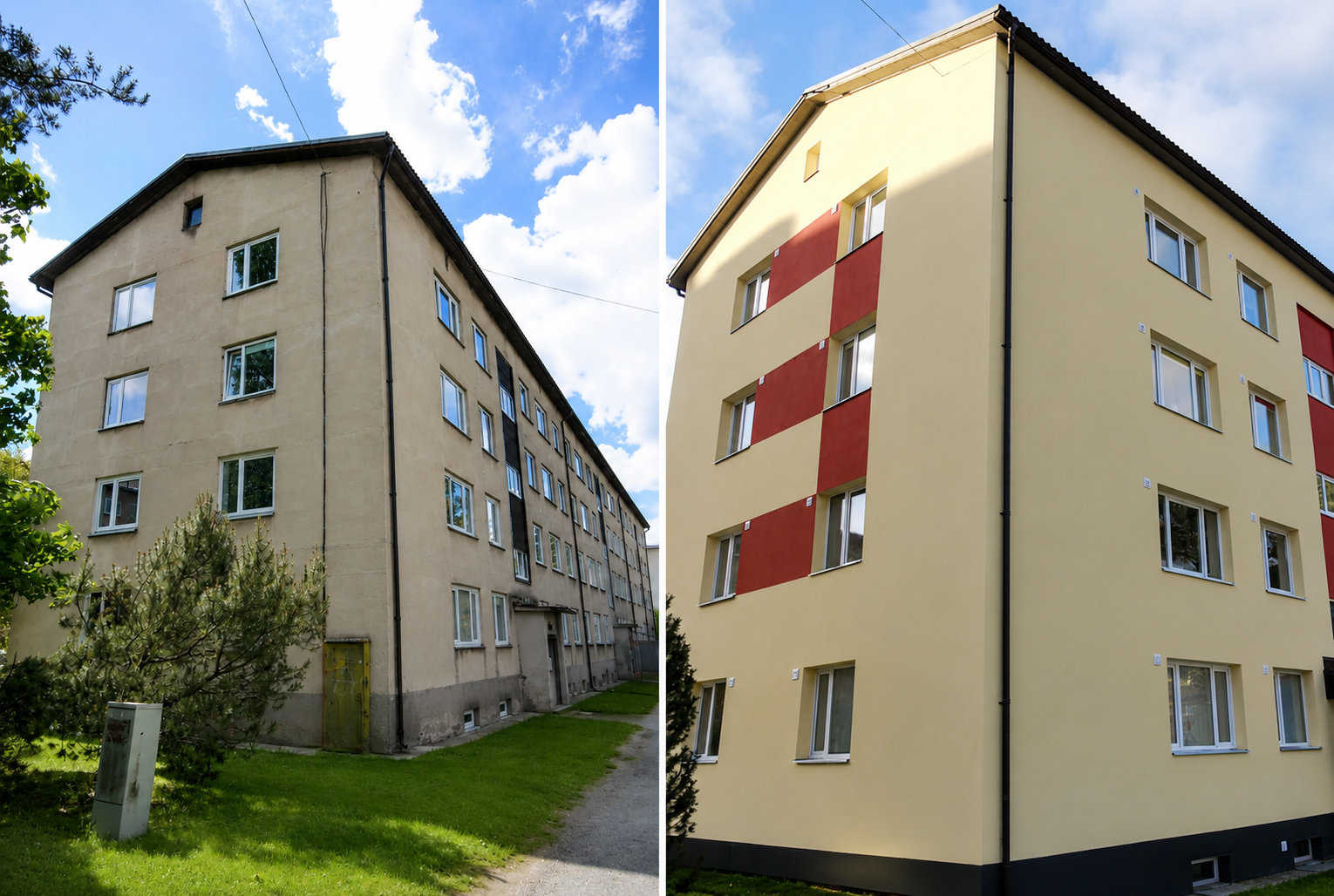

Mahlamäe tn 3 facade before and after renovation
Before and after · Mahlamäe tn 3
Project Passport

Mahlamäe
tn 3

Address
Mahlamäe tn 3, Rapla linn, Rapla vald, Rapla maakond
Category
Apartment Building Facade Renovation
Facade
1,050 m² · EPS 60 facade insulation · reinforced base coat · exterior finish
Fire Safety
290 m² · Rockwool Frontrock Max E mineral wool fire barriers
Status
Completed
1,050EPS facade insulation m²
290Mineral wool fire barriers m²
294Window sills removed lm
RPRBuilding archive project

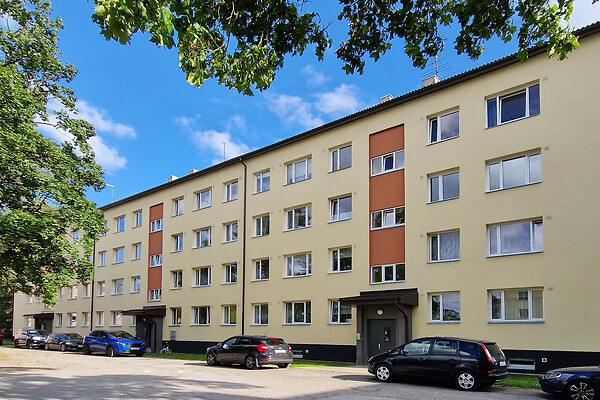

Completed apartment building facade at Mahlamäe tn 3
Completed facade · renewed exterior finish
Technical Scope

Works
performed.

CodeWorkQuantity
01Soojustamine vahtpolüstüreenplaadiga 100 mm koos paigaldusliimi ja tüübeldamisega — EPS 601,050 m²
02Soojustamine kivivillaga 100 mm: tuletõkkekatikud koos tüübeldamisega — Rockwool Frontrock Max E290 m²
03Raudbetoonist aknaaluslaudade eemaldamine294 jm
04Existing facade preparation and cleaningFacade
05Reinforced base coat with glass-fibre meshFacade
06Exterior finishing and architectural colour accentsFacade
07Plinth-zone renewal and finishingPlinth
Comparison of Mahlamäe tn 3 before and after facade renovation
Facade transformation · before / after
01
Facade Renovation

Insulation.
Protection.
Finish.

The apartment building received a complete thermal facade renovation with EPS insulation, mineral-wool fire barriers, reinforced base coat and a renewed architectural finish.

02
Construction Process

Scaffold.
Layers.
Control.

Project photography records the work in progress: complete scaffolding, insulation installation, reinforced layers and controlled preparation for the final facade finish.

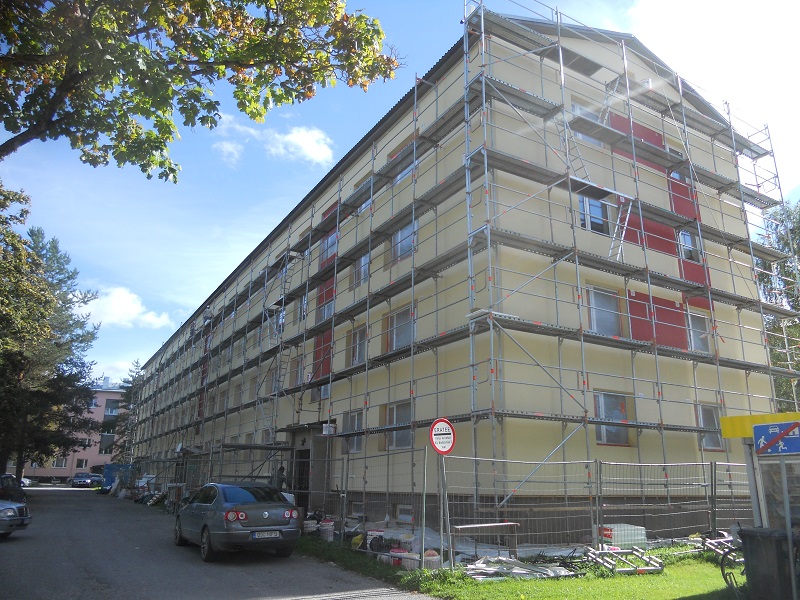

Facade renovation in progress with scaffolding at Mahlamäe tn 3
Process · scaffolding and facade works
Completed facade with red architectural accent panels at Mahlamäe tn 3
Result · completed facade and plinth
03
Completed Result

Renewed
identity.

Mahlamäe tn 3 is documented as a complete apartment-building facade renovation with improved thermal performance, renewed plinth areas and distinctive red accent panels.

End of Project

RPR-003

Mahlamäe tn 3
