House of RAMERK · Volume I
RPR-008
Reinu
tee 8

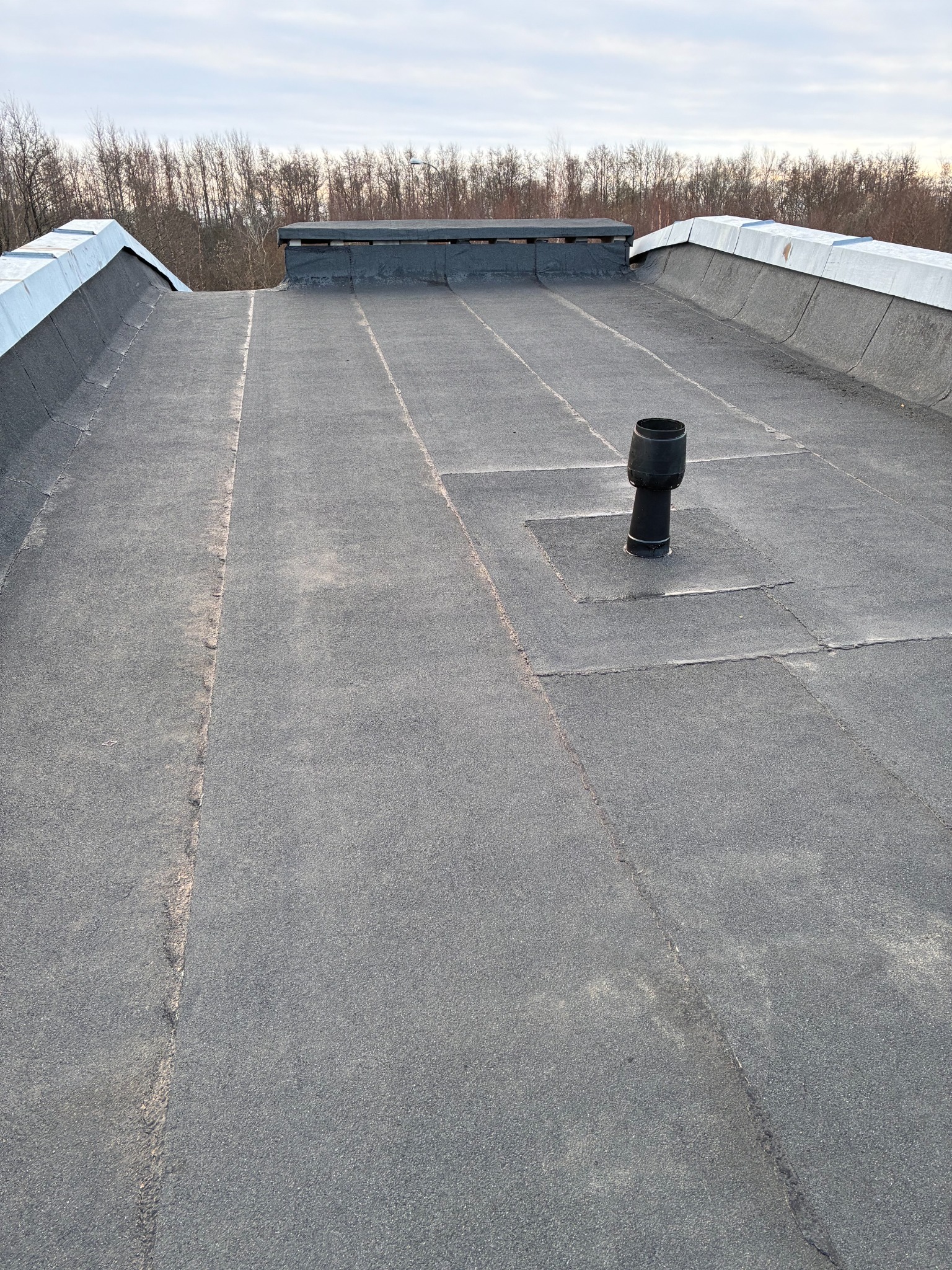

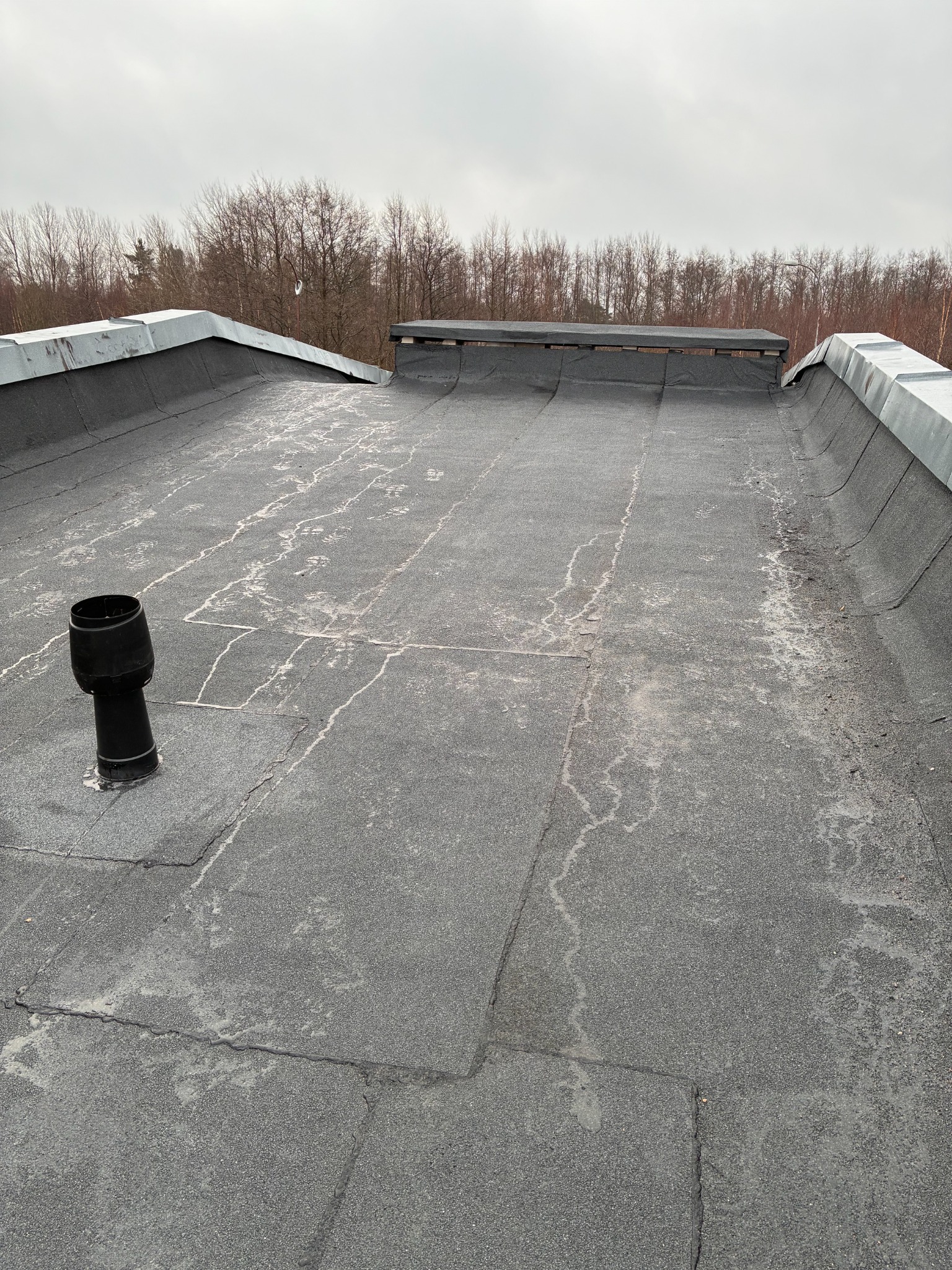

Completed SBS roof · Reinu tee 8
| Code | Work | Quantity |
|---|---|---|
| 01 | Roof cleaning and surface preparation | 1 complete |
| 02 | Roof levelling works | 340 m² |
| 03 | Removal of ventilation units | 4 pcs |
| 04 | Demolition of steel beams | 2 pcs |
| 05 | Removal of obsolete roof cables | 1 complete |
| 06 | Installation of 15 mm waterproof plywood | Parapets & details |
| 07 | Installation of SBS 5 kg top layer | 340 m² |
| 08 | Upstands and triangular fillets | 1 complete |
| 09 | Ventilation chimney replacement | 1 complete |
| 10 | Chimney cap waterproofing | 1 complete |
| 11 | Galvanized edge flashing | 1 complete |
| 12 | Transport, lifting and final cleaning | 1 complete |

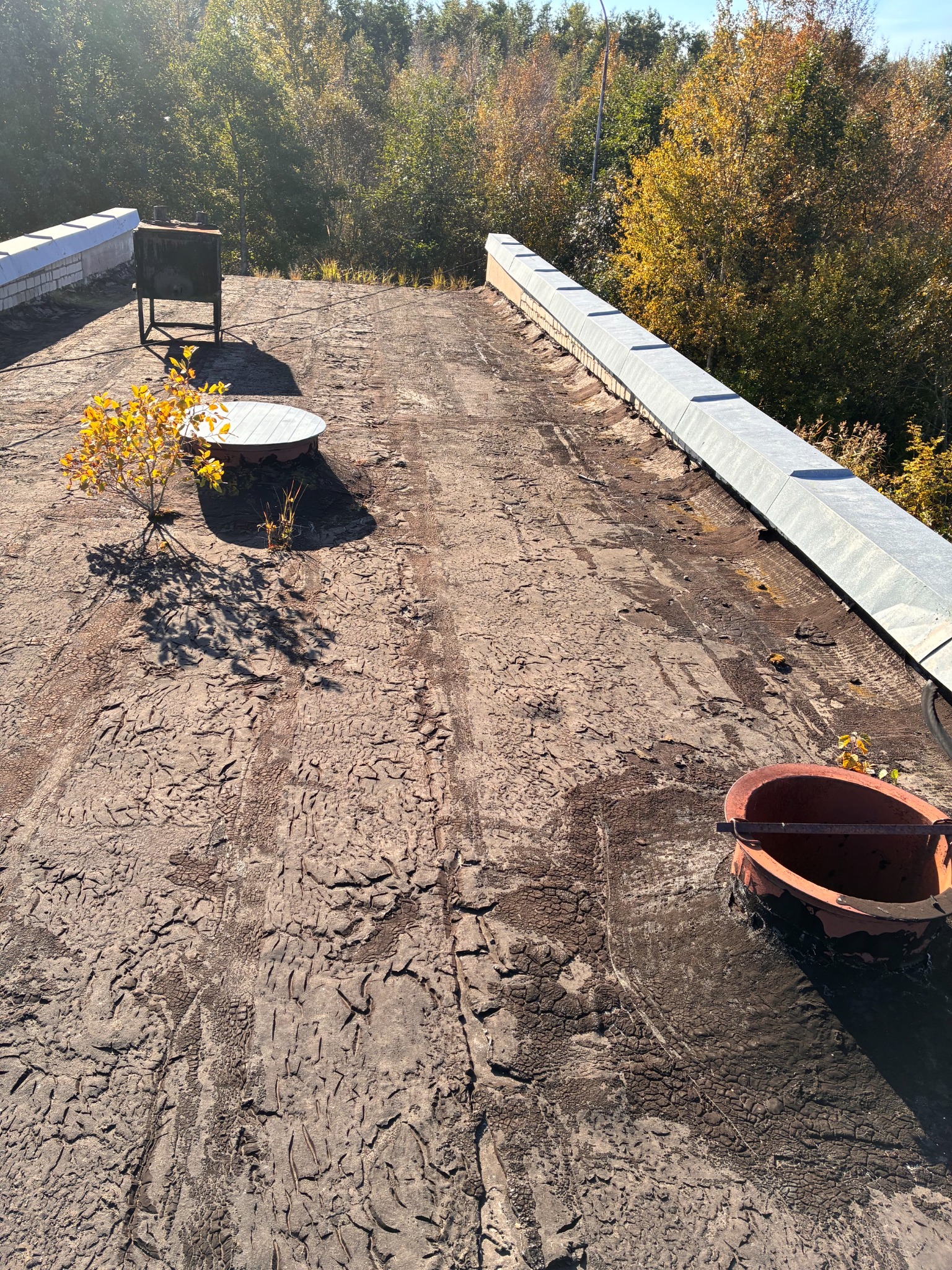

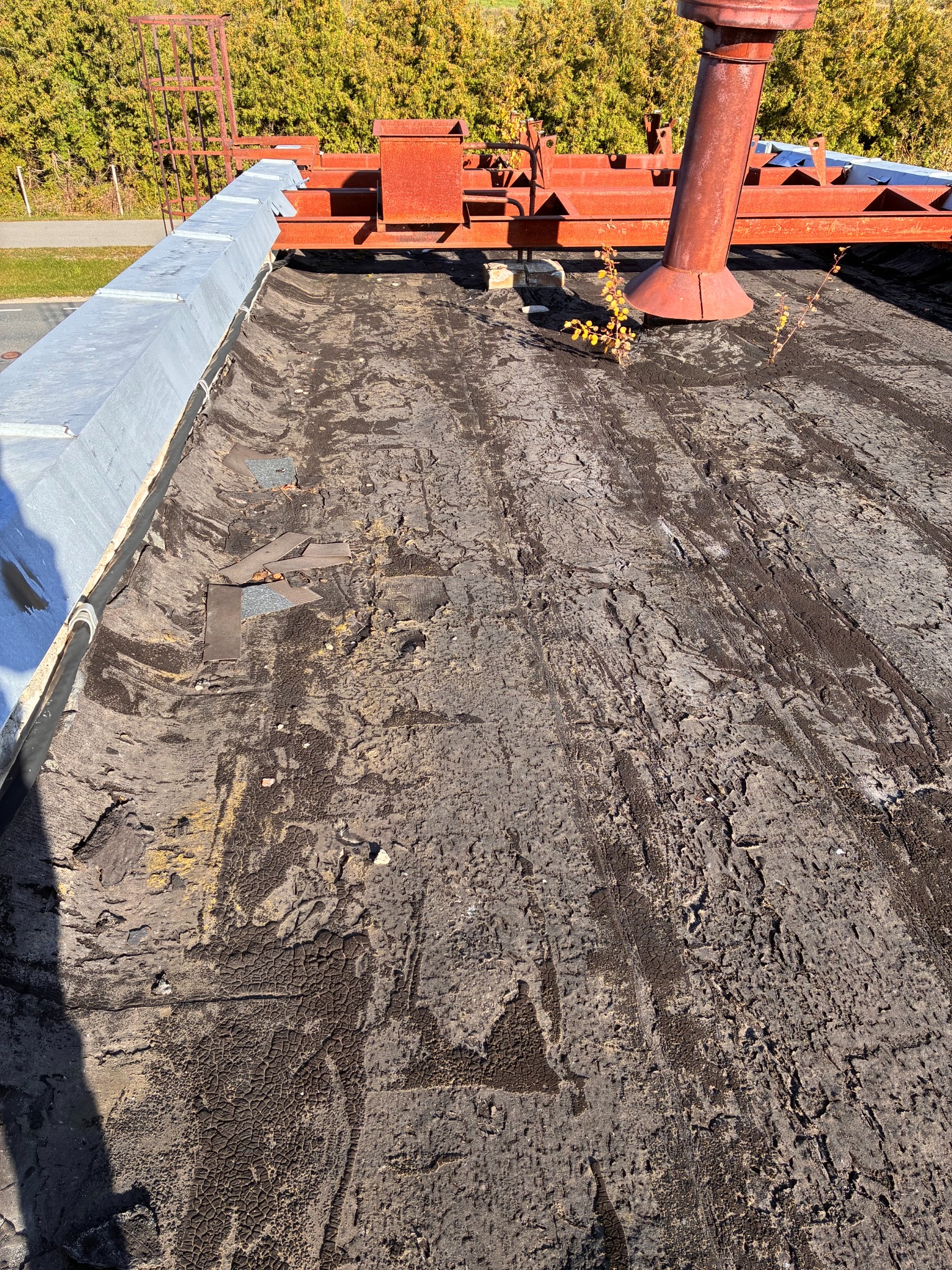

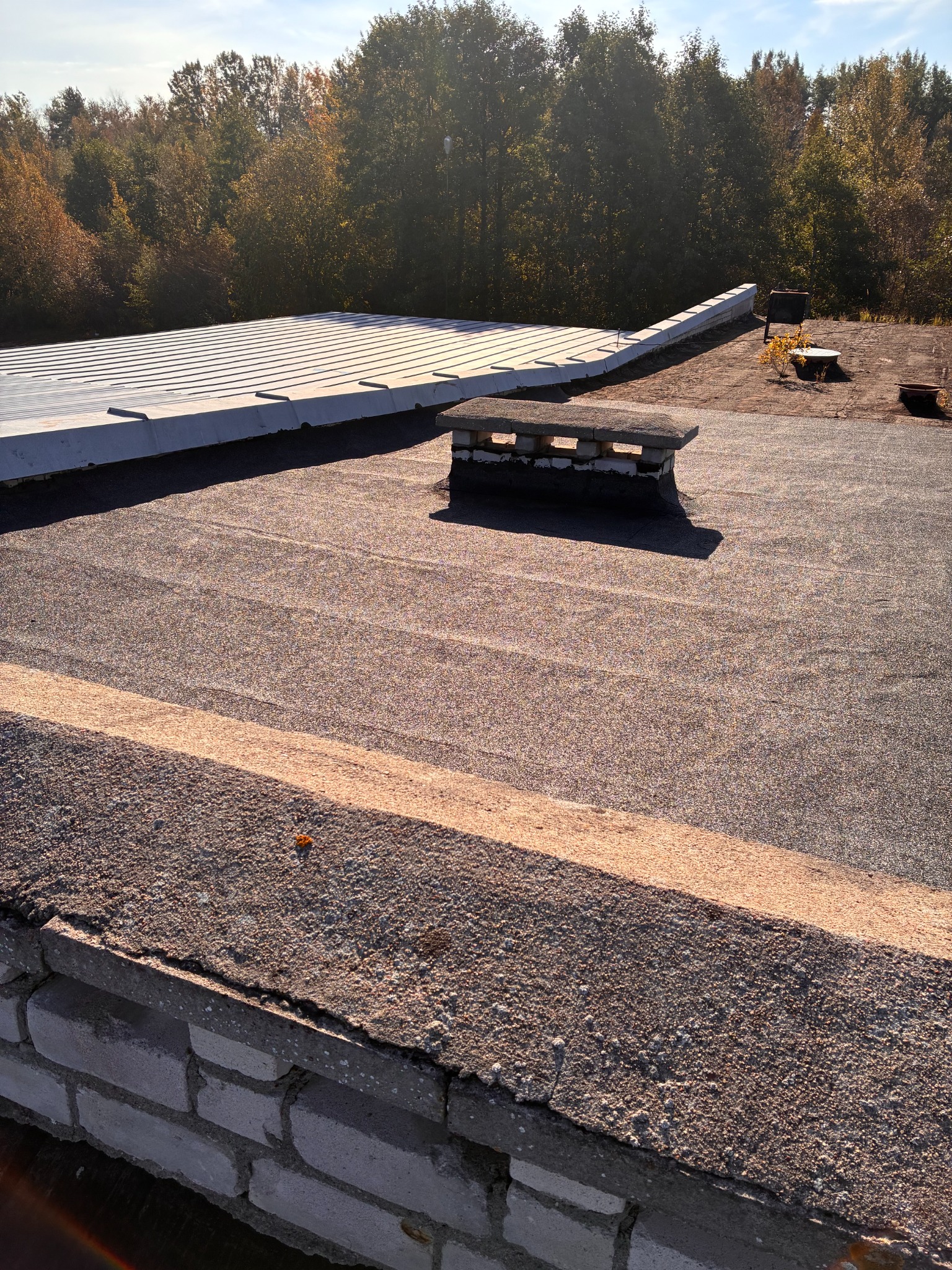

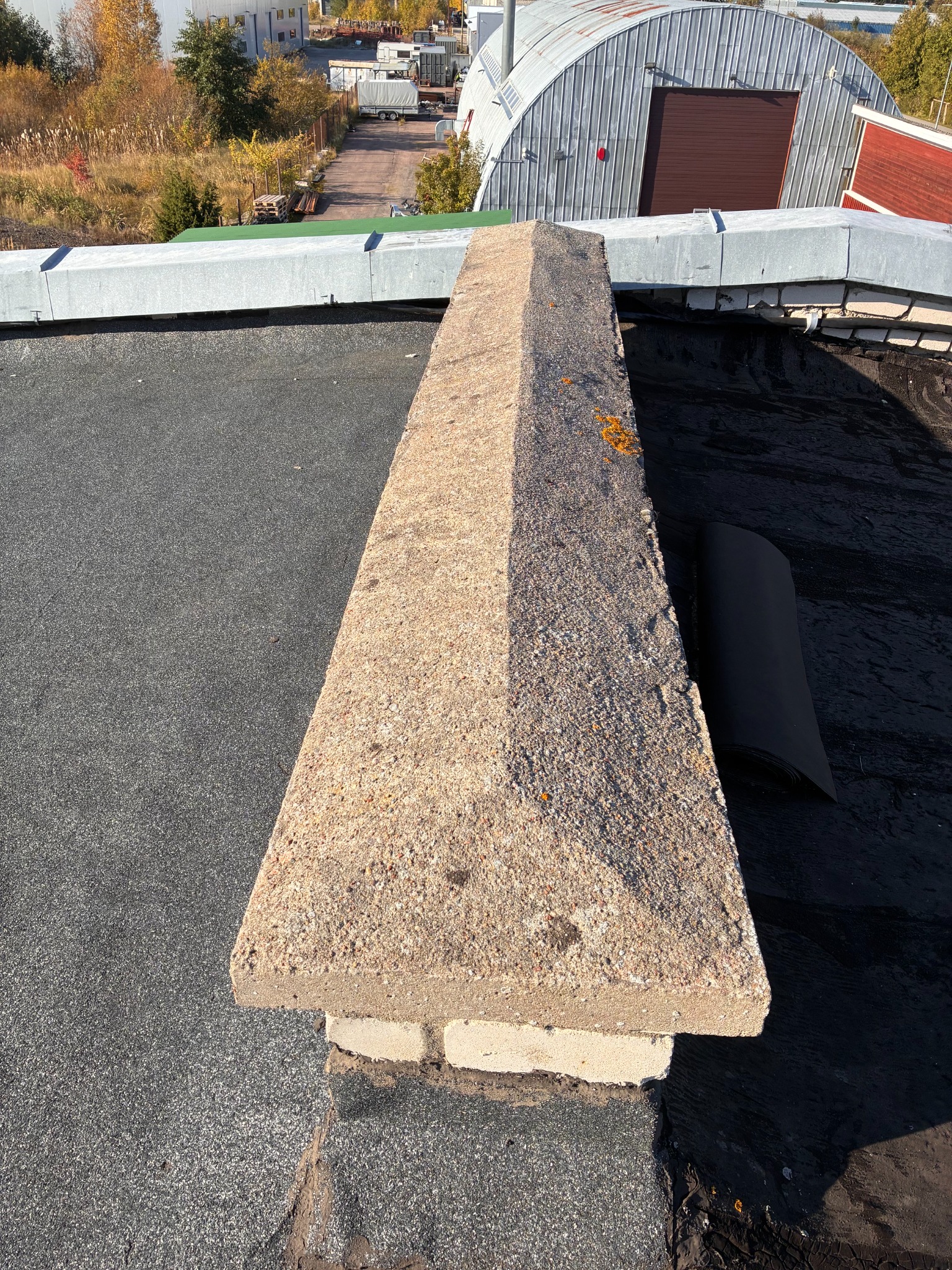

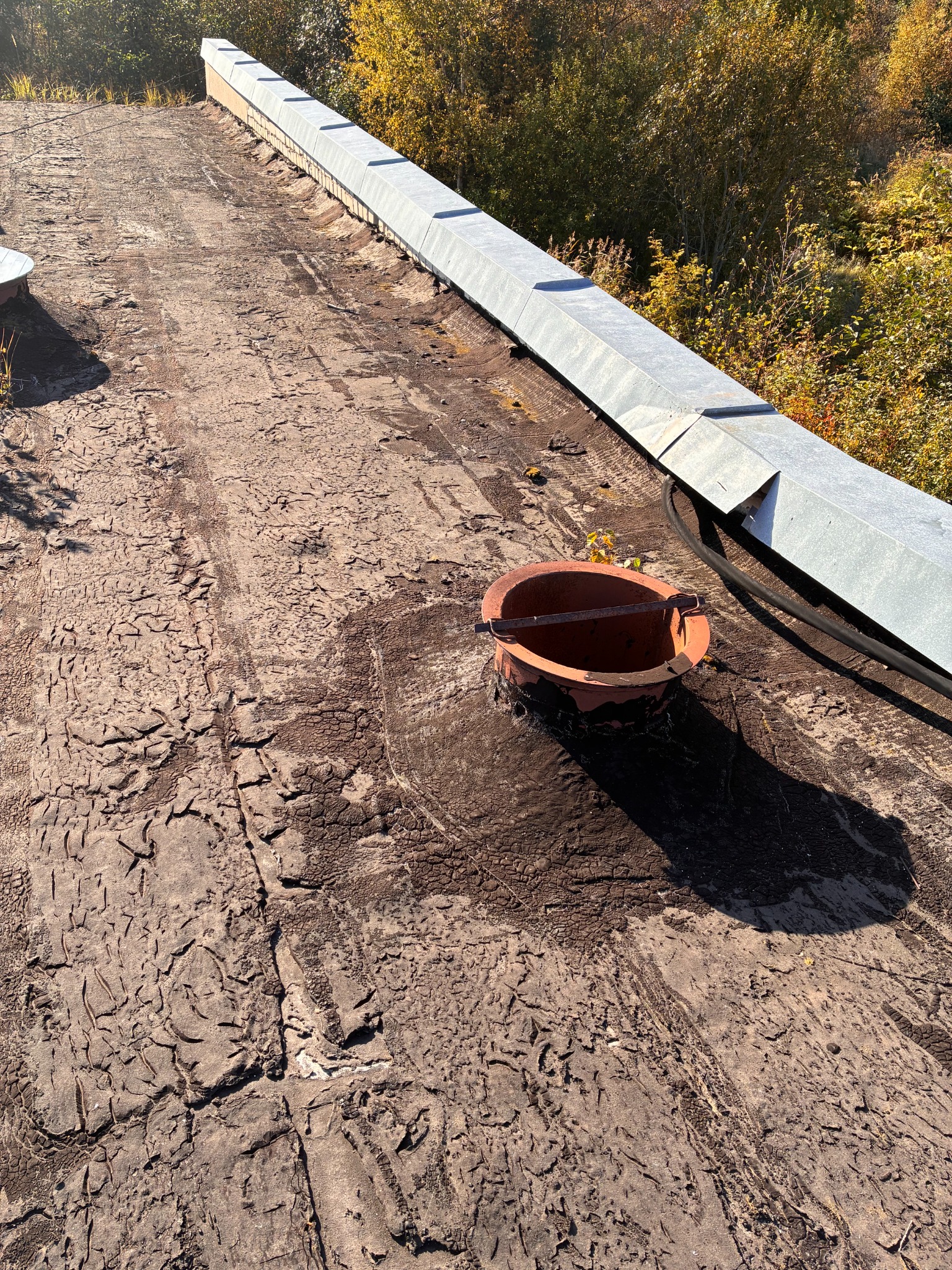

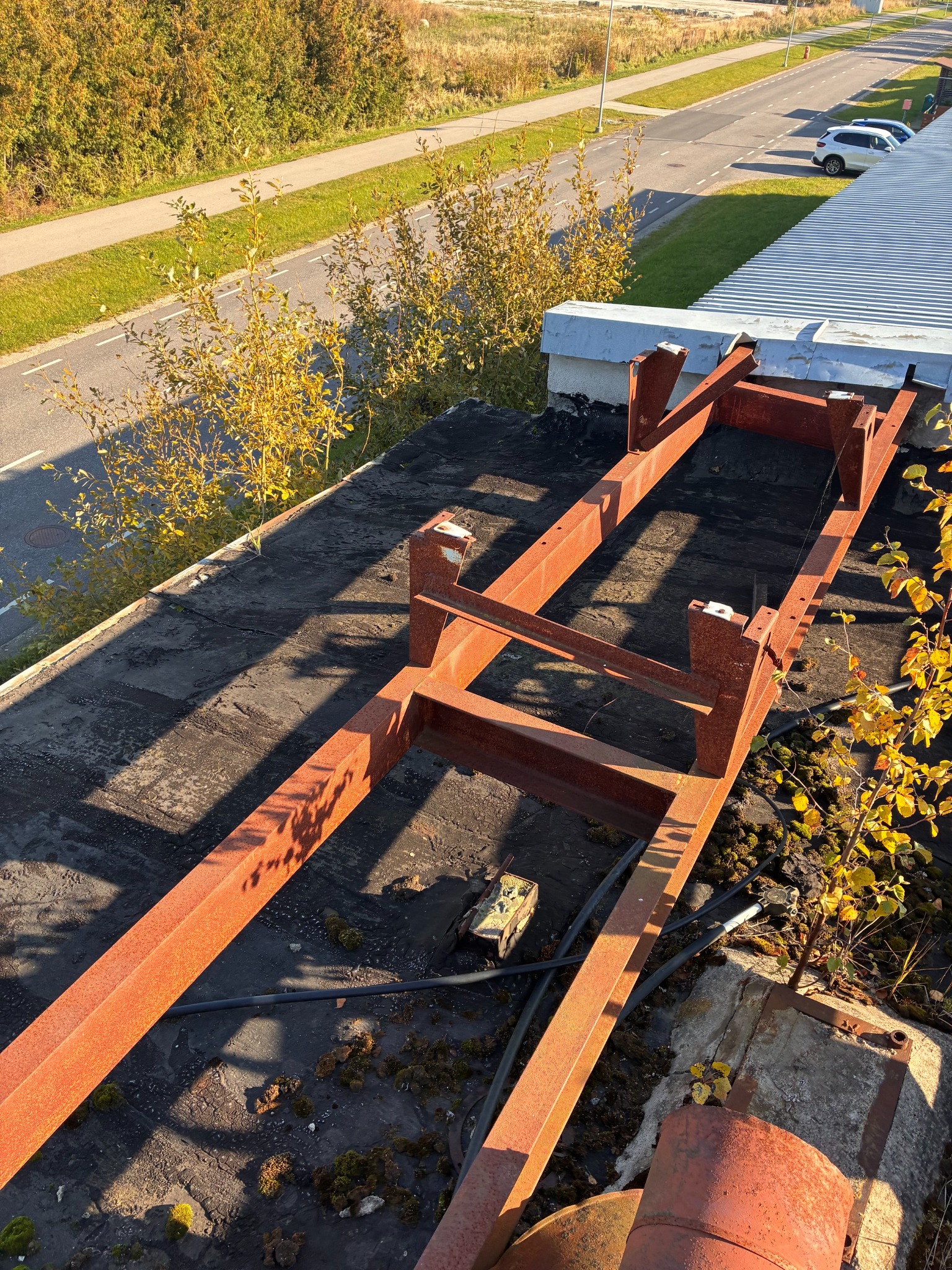

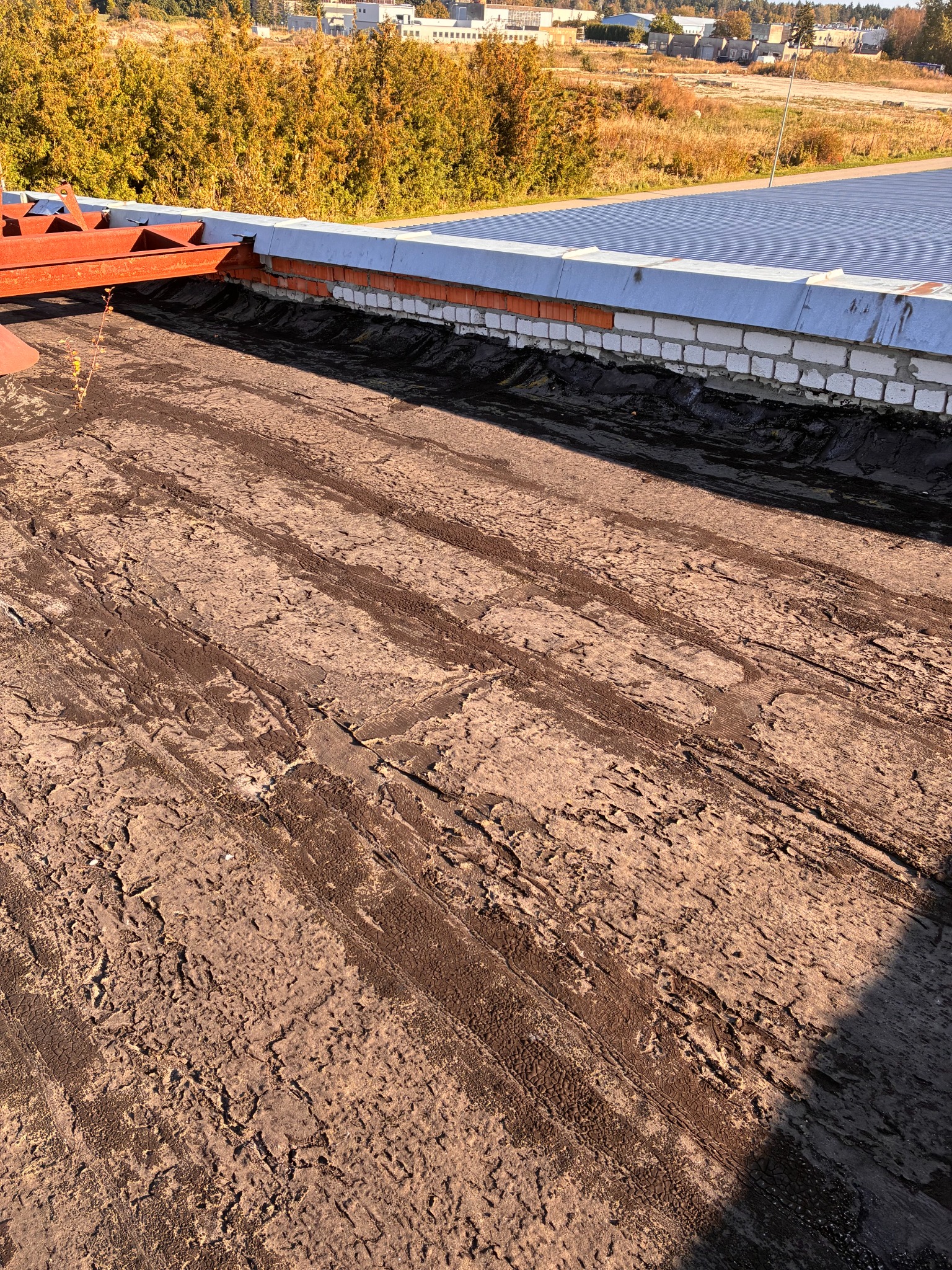

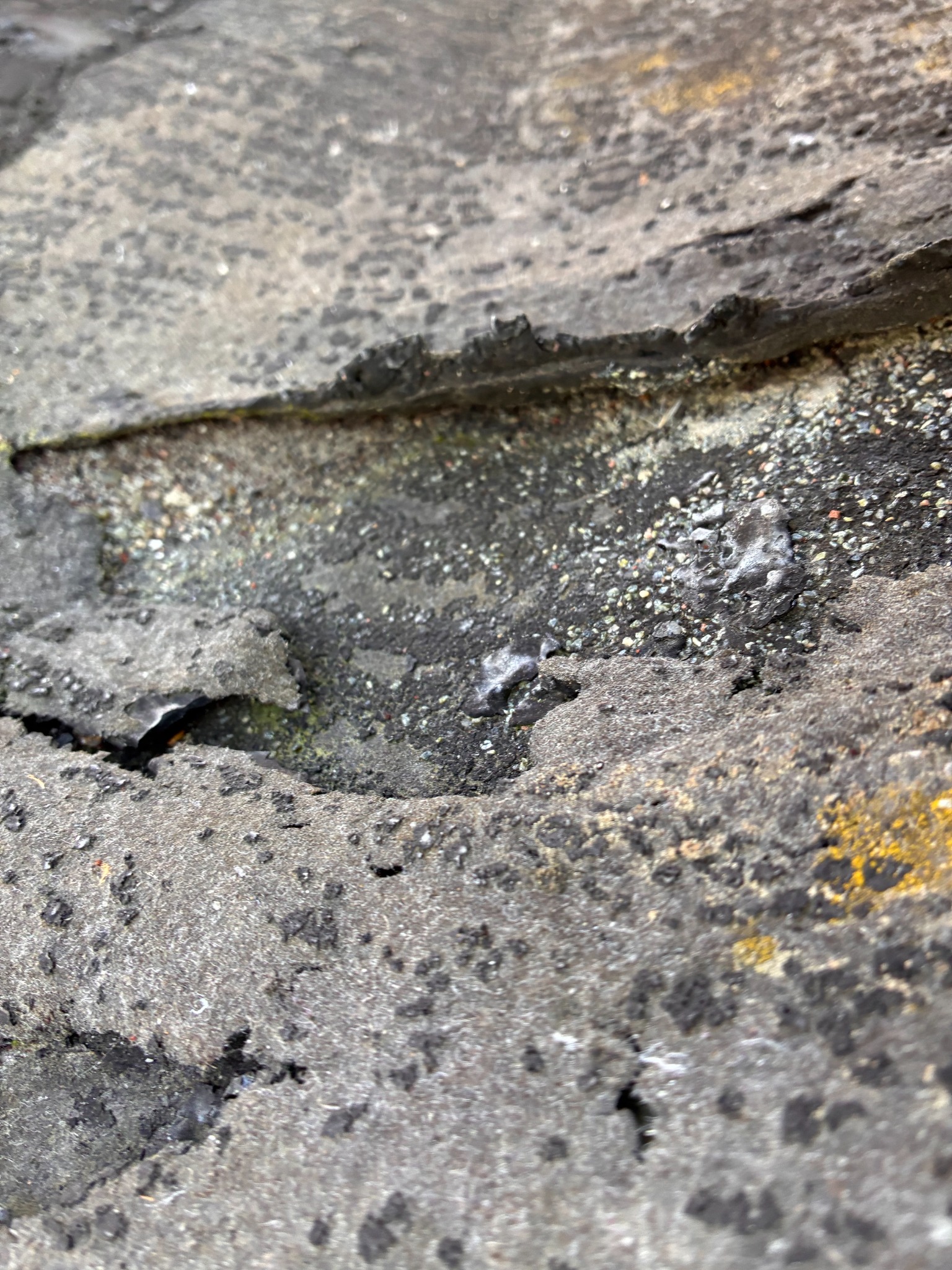

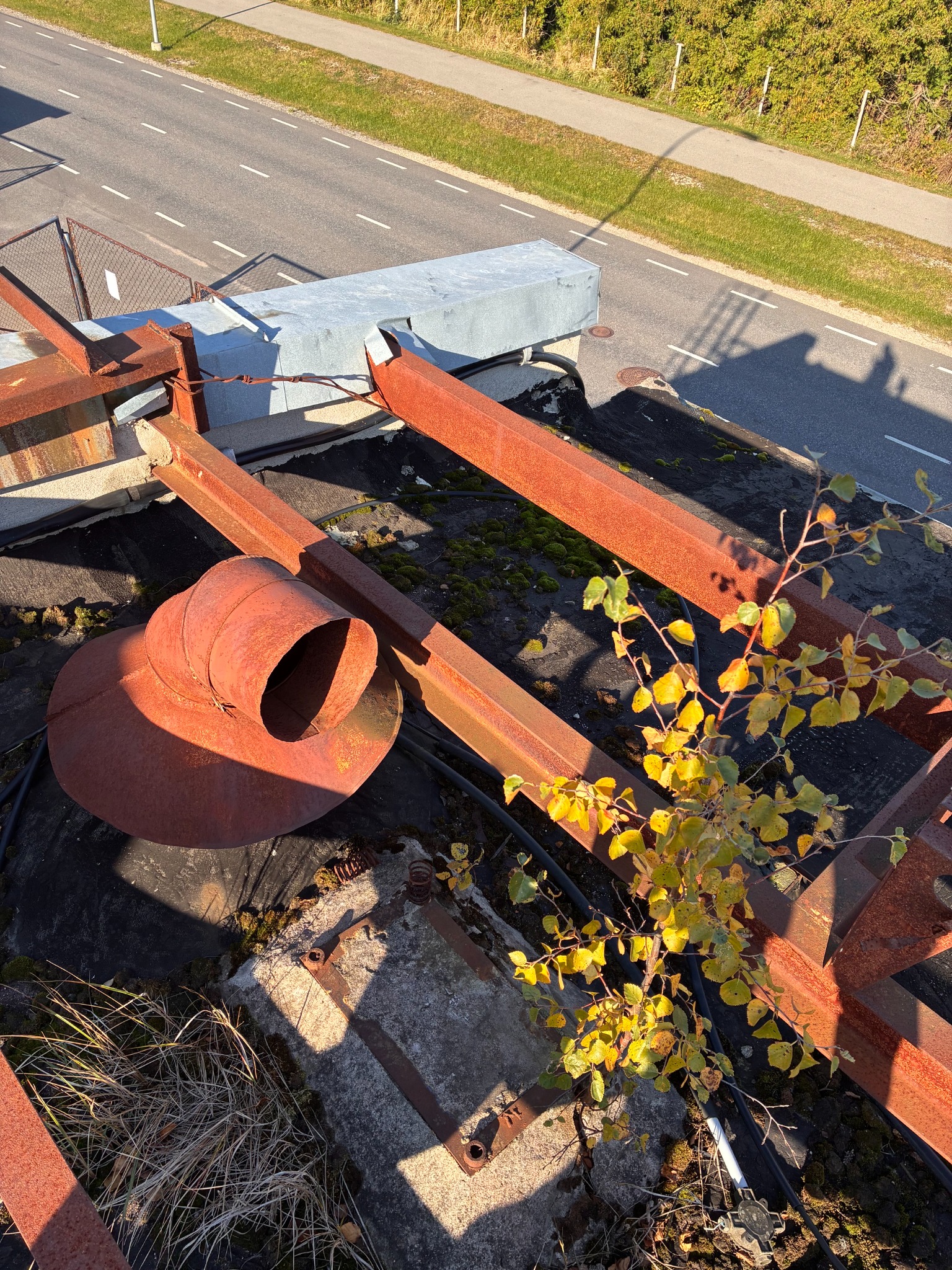

| 01 | Existing SBS showed cracking, moss and vegetation | Before |

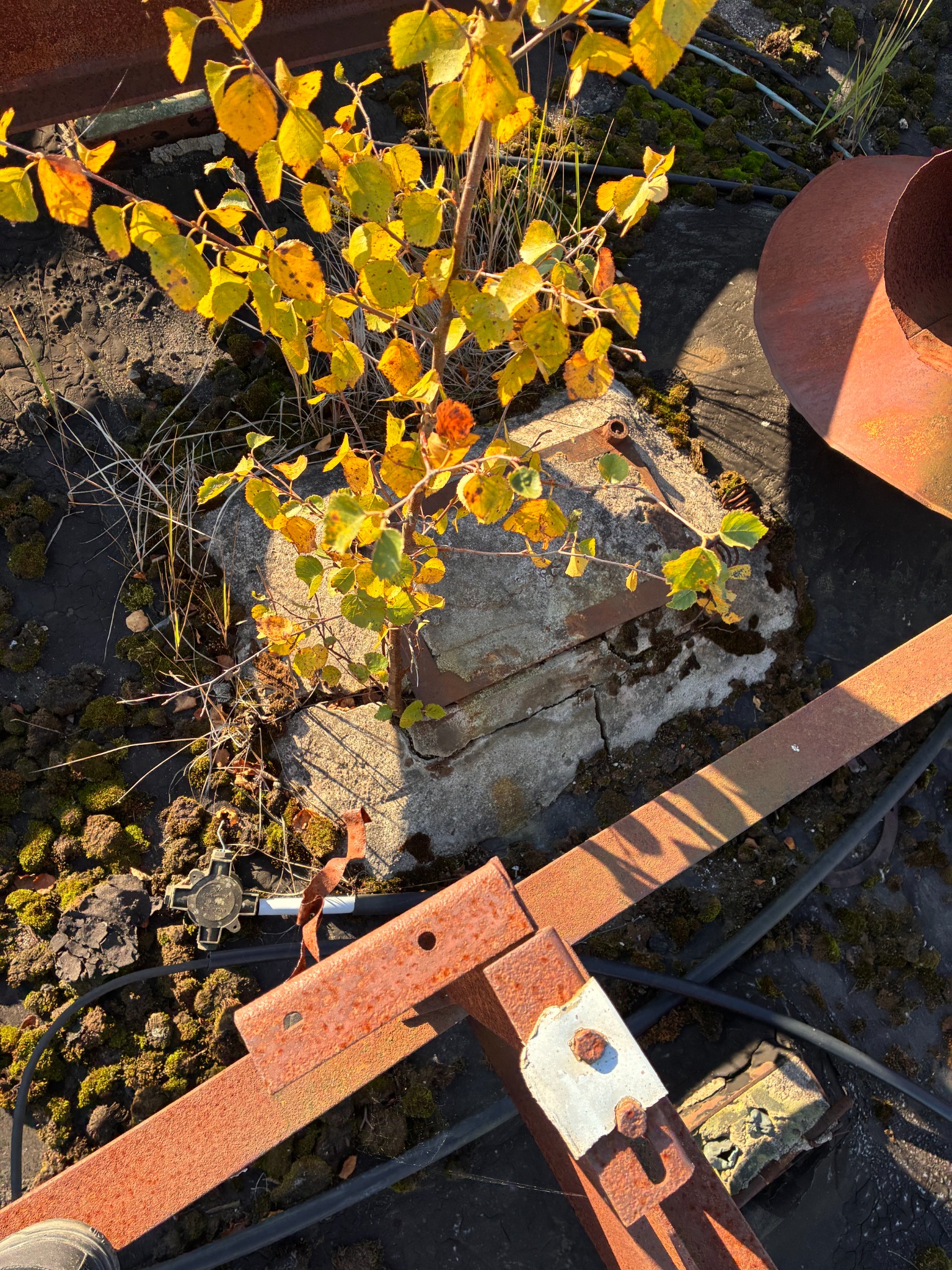

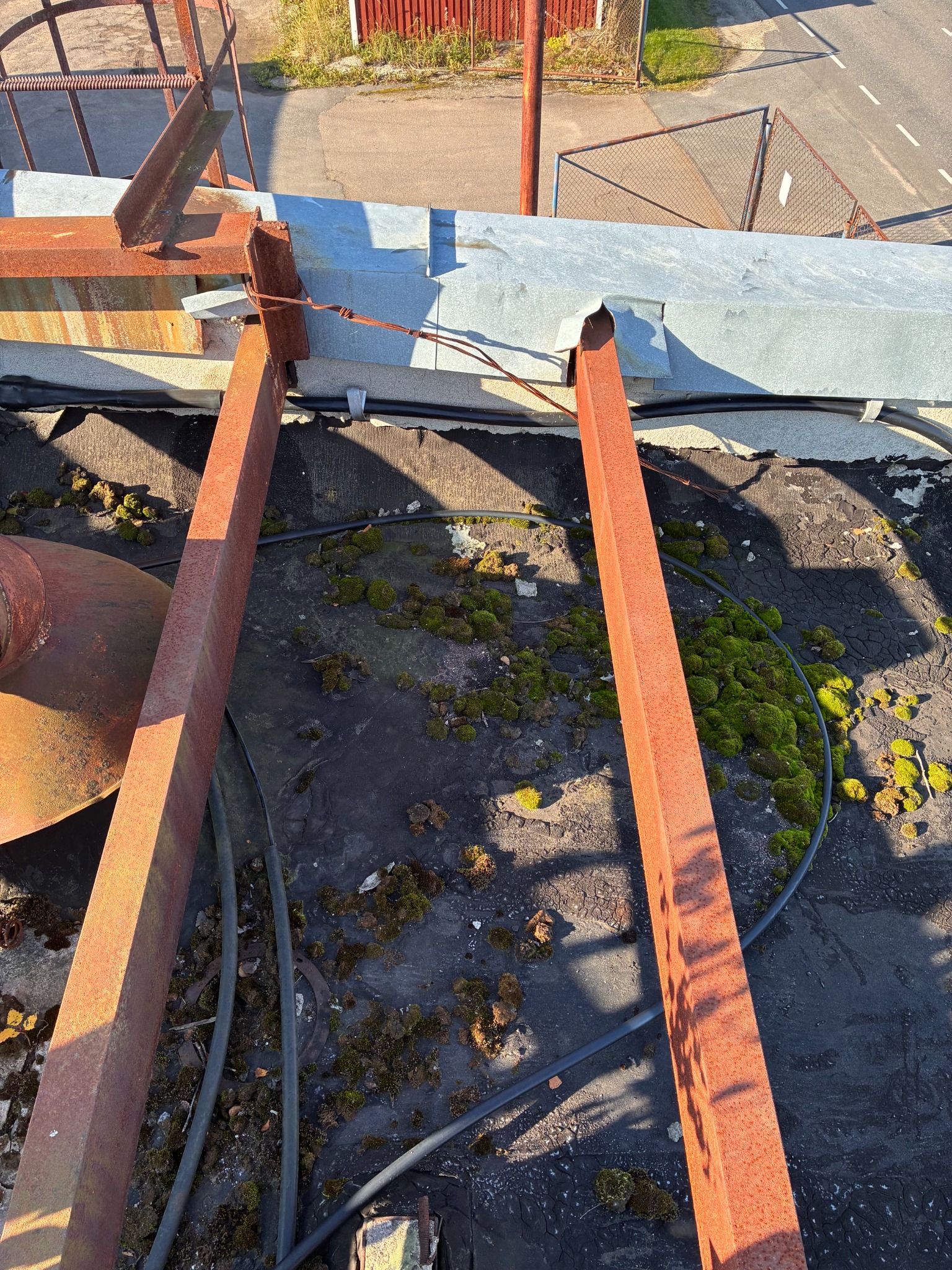

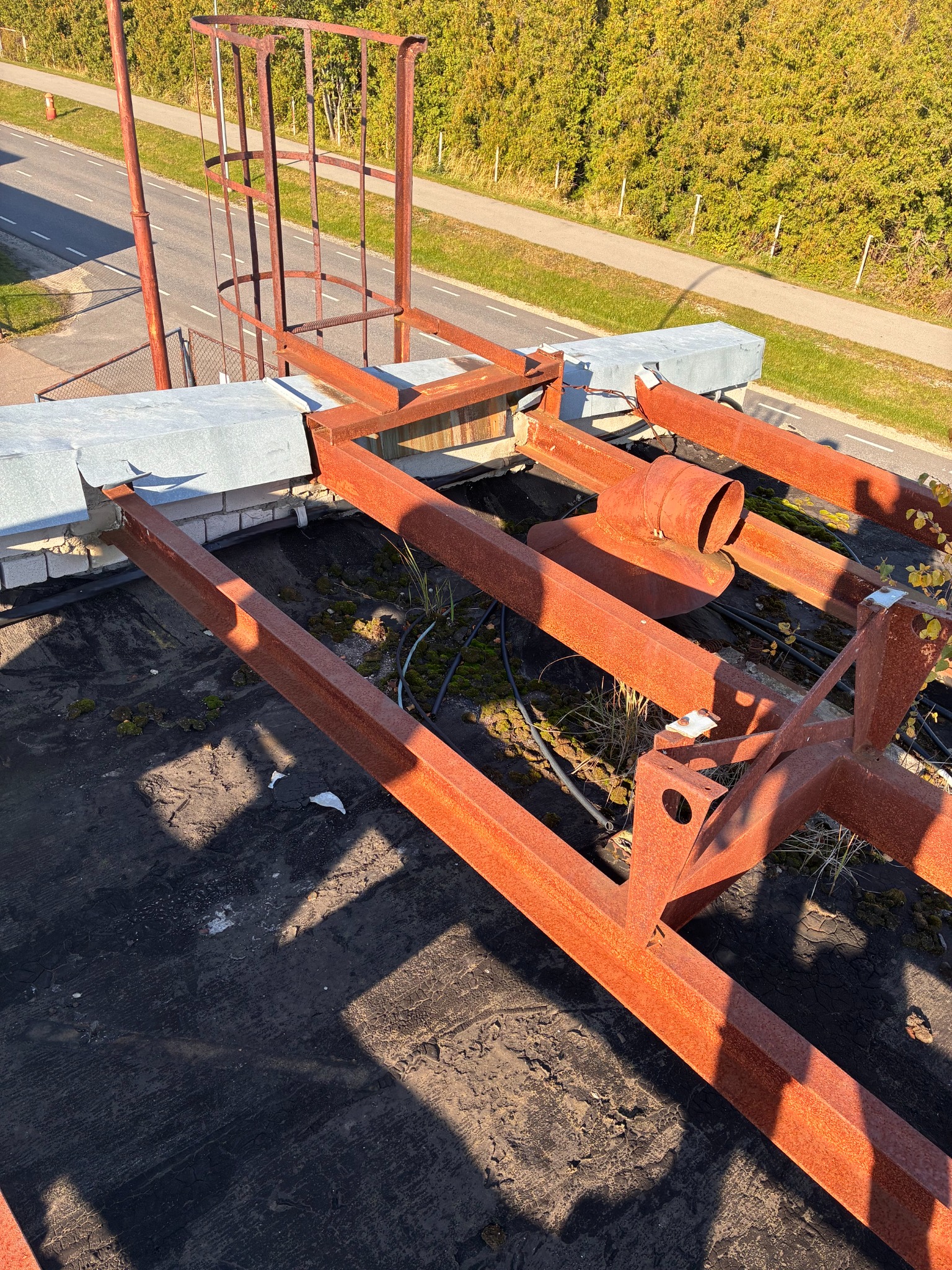

| 02 | Obsolete cables, ventilation units and steel structures removed | Dismantling |

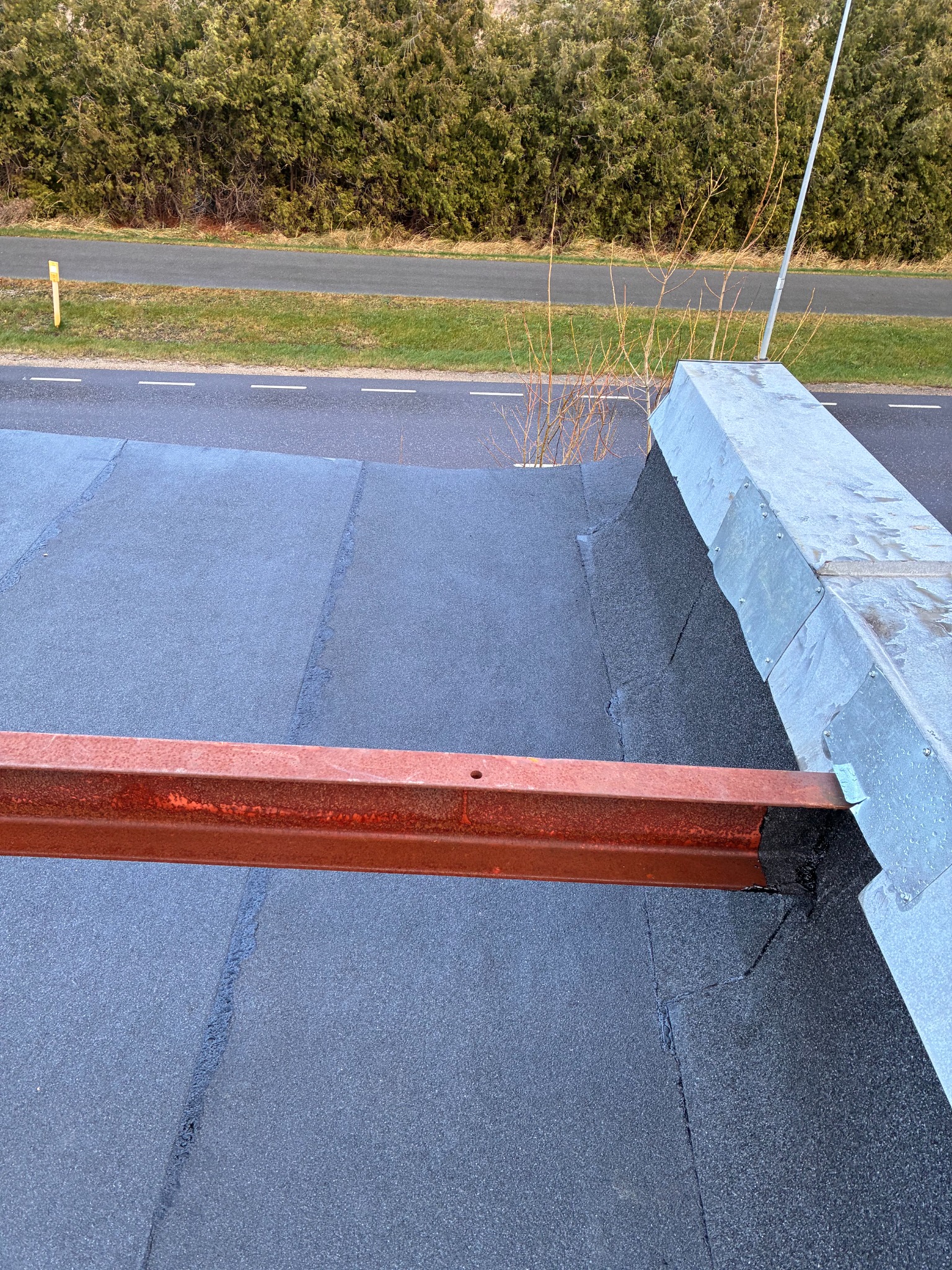

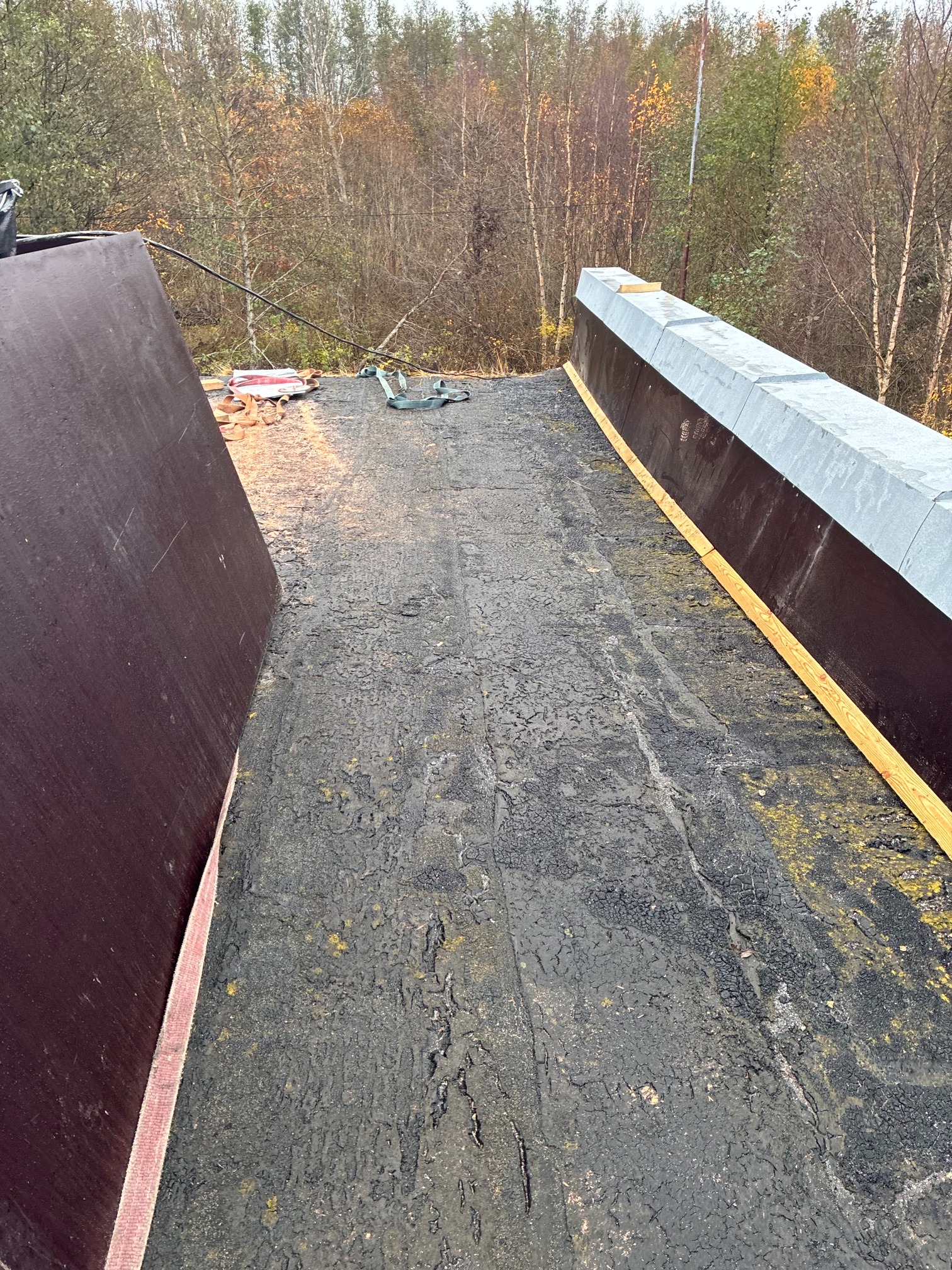

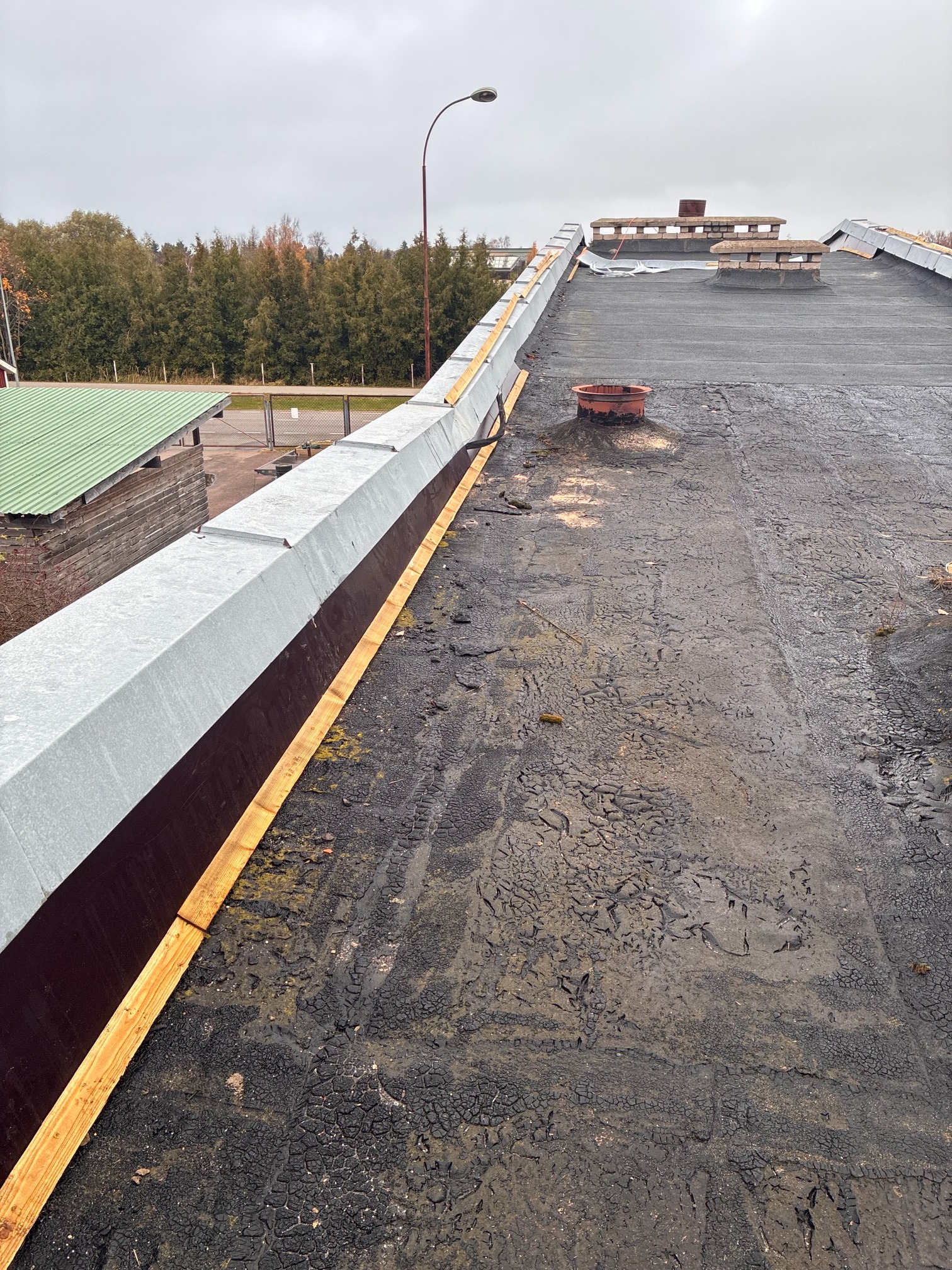

| 03 | Parapets and critical junctions rebuilt with waterproof plywood | Preparation |

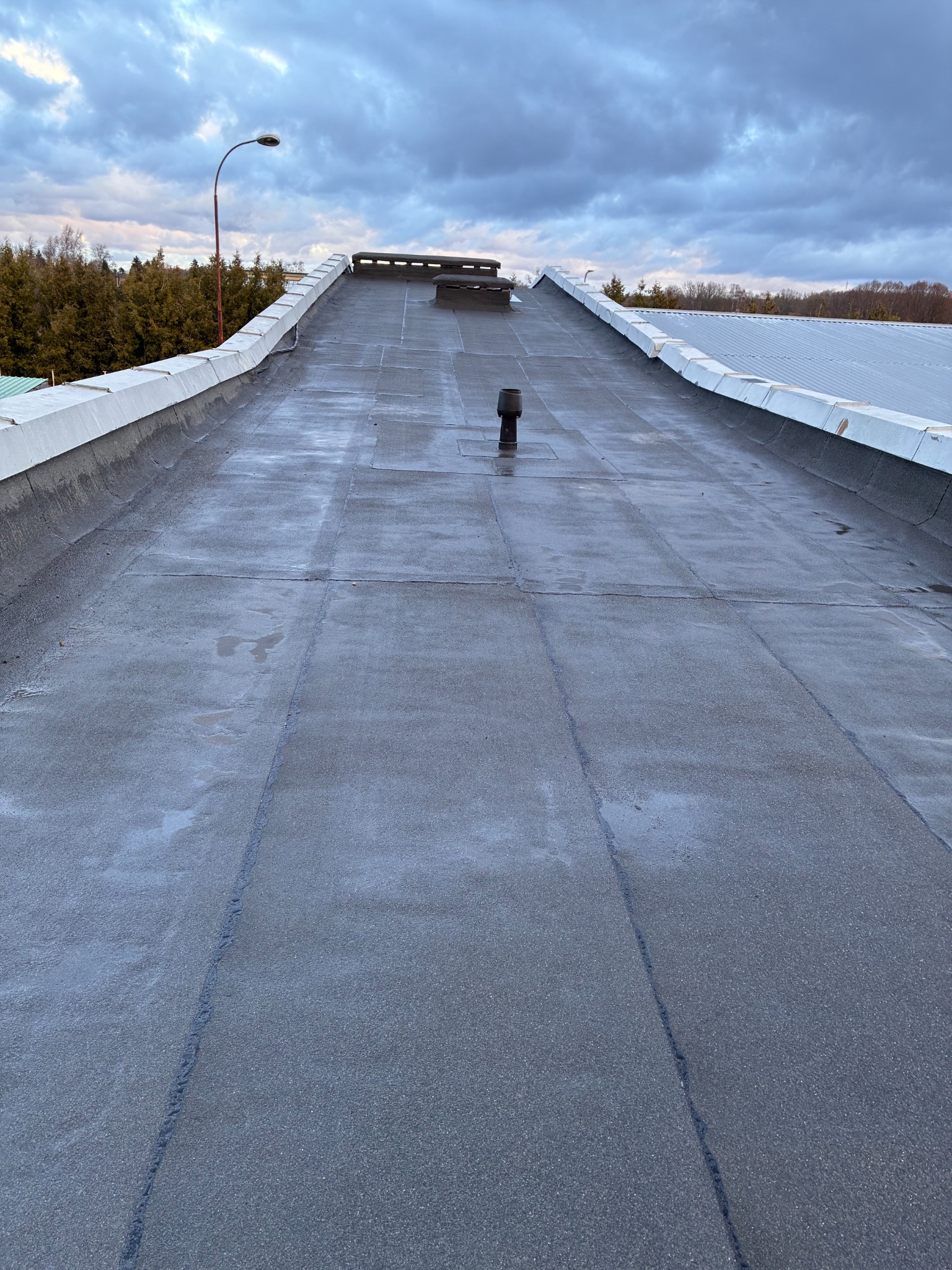

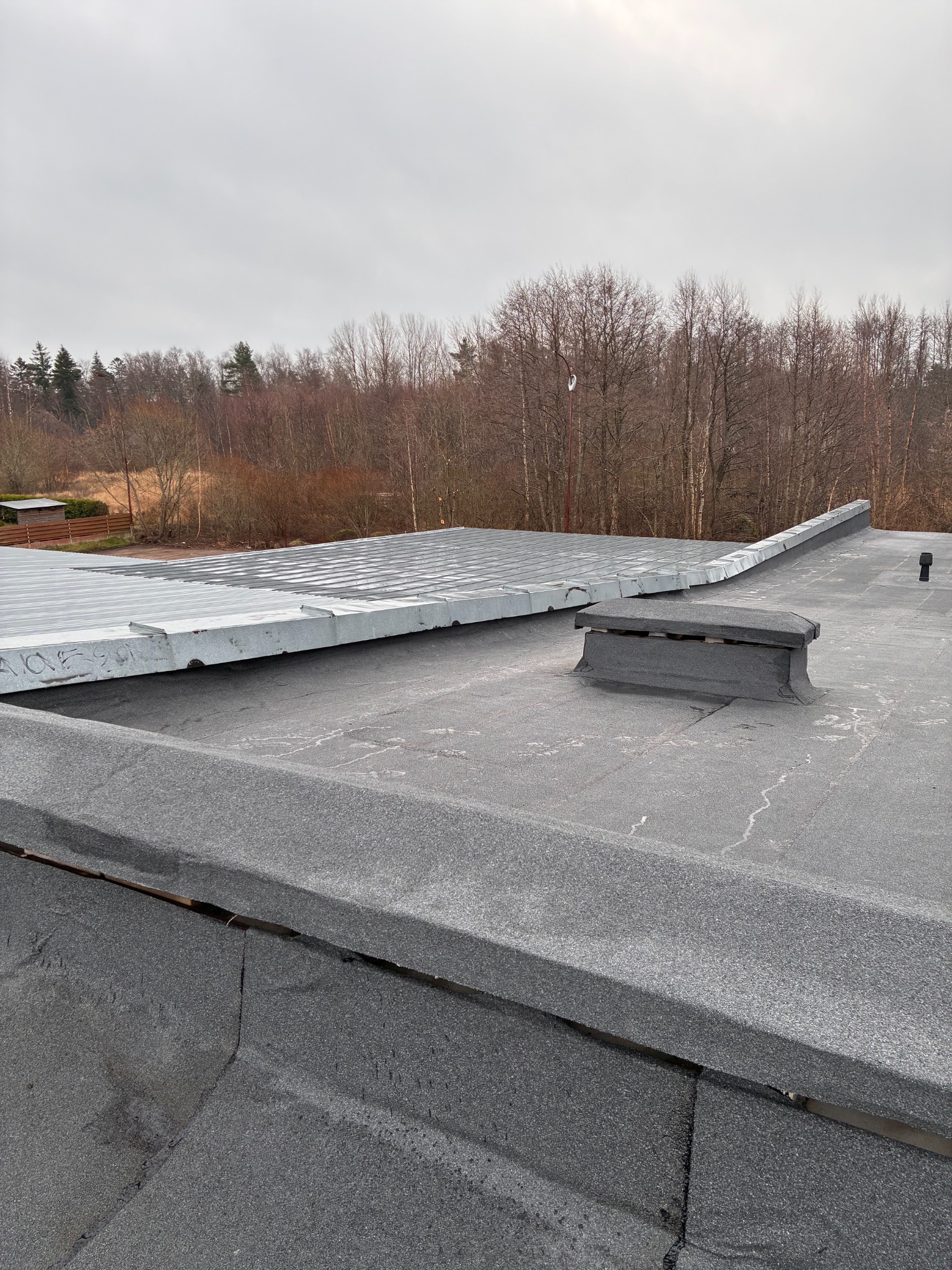

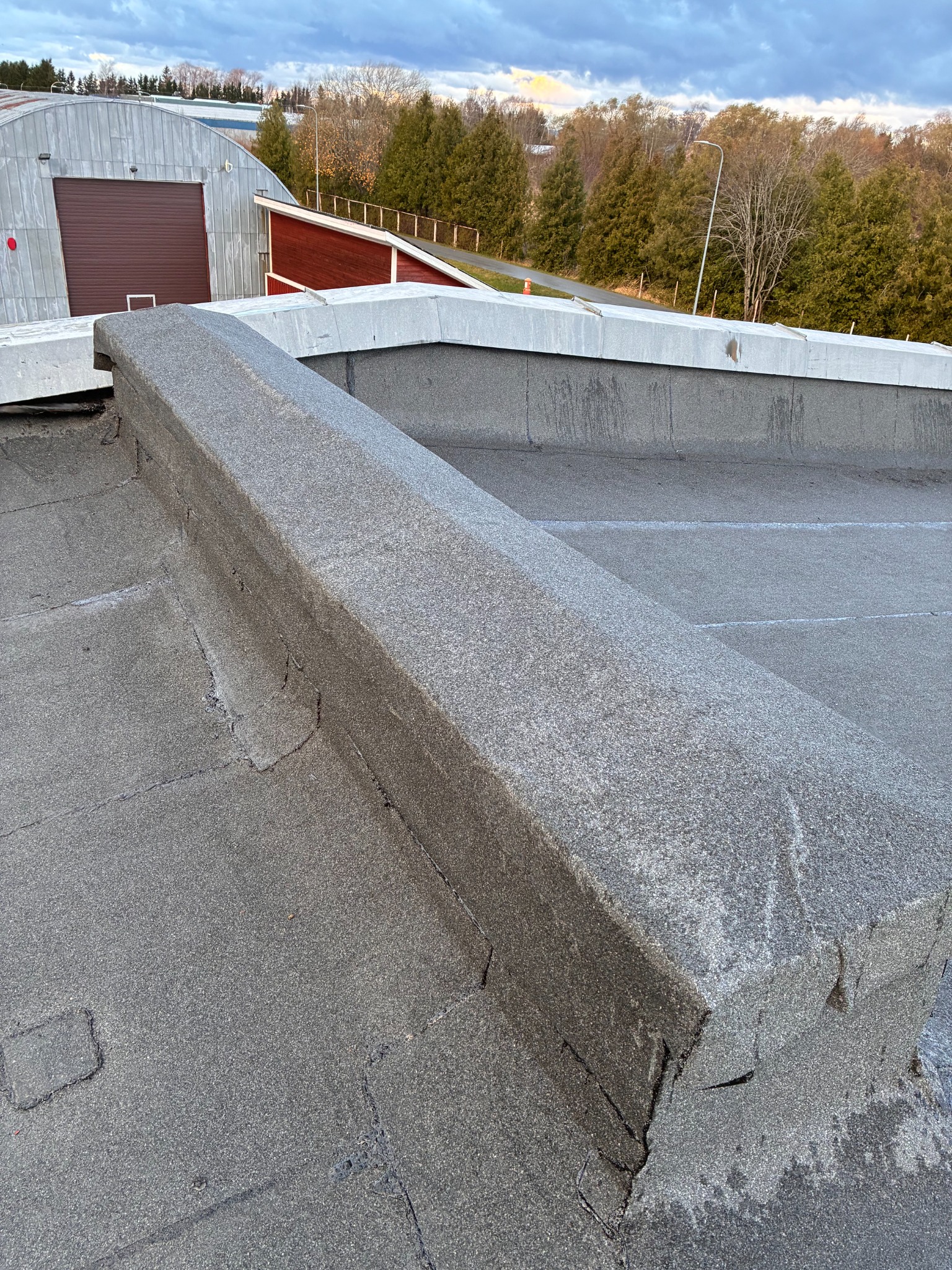

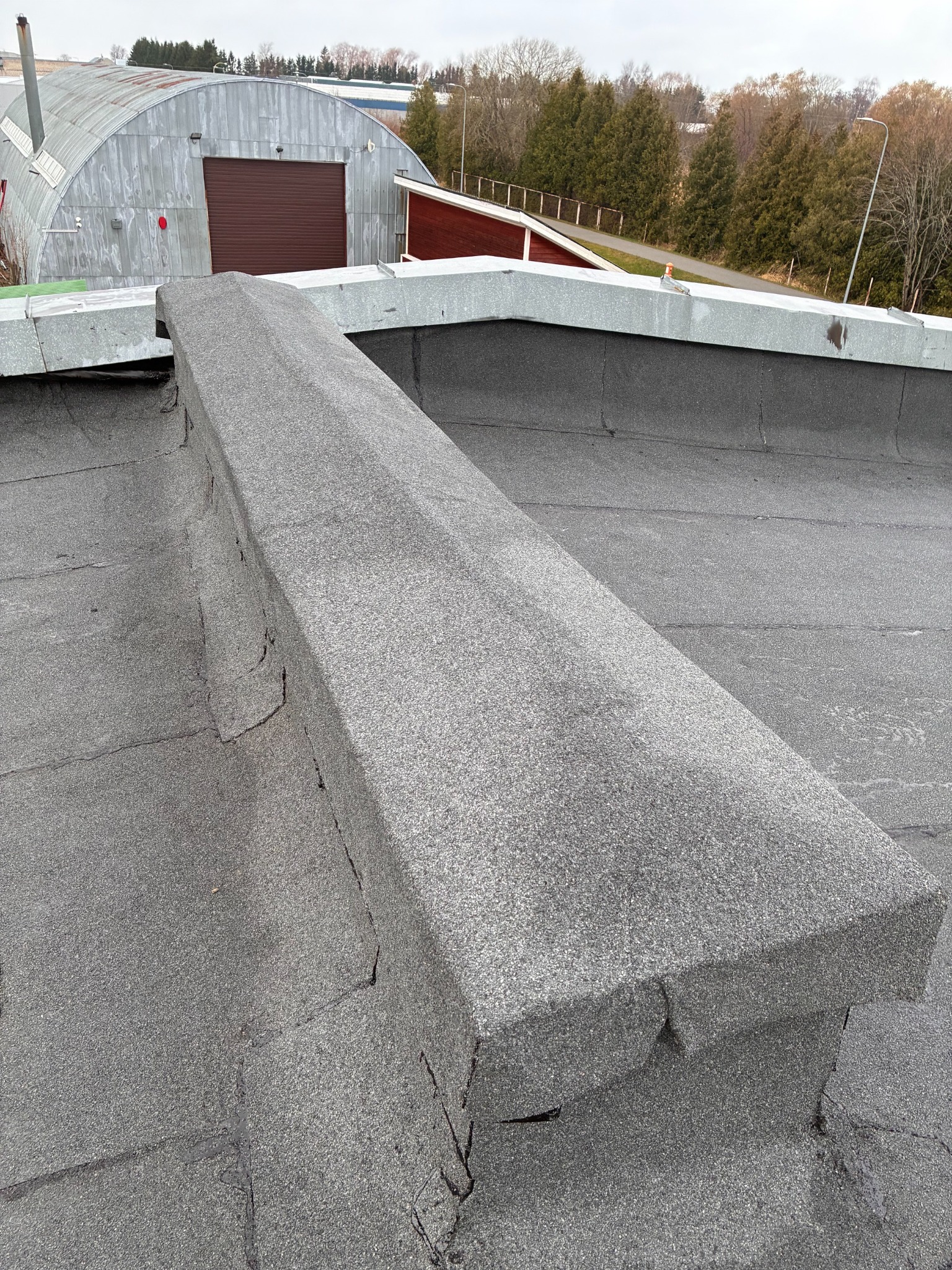

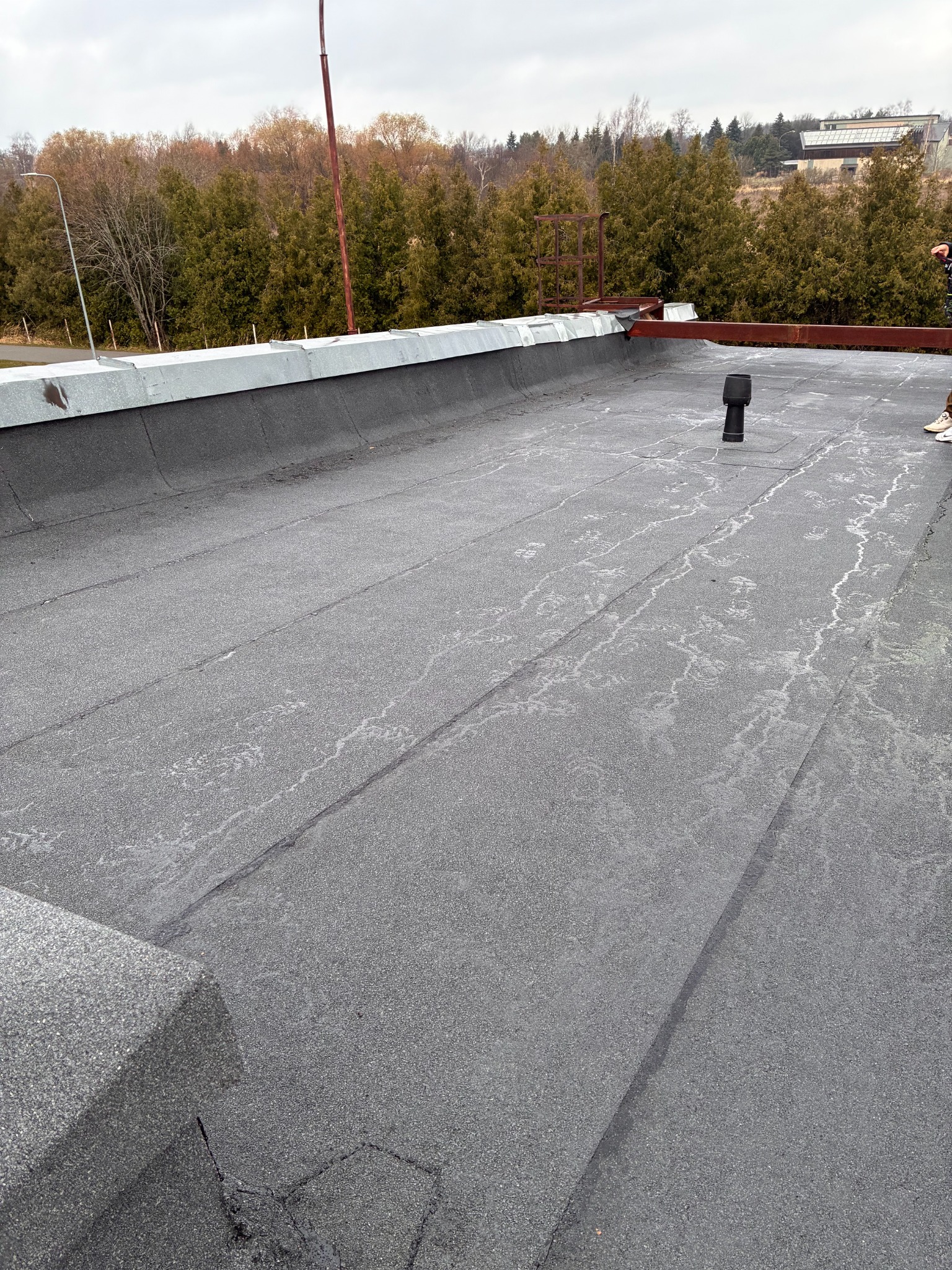

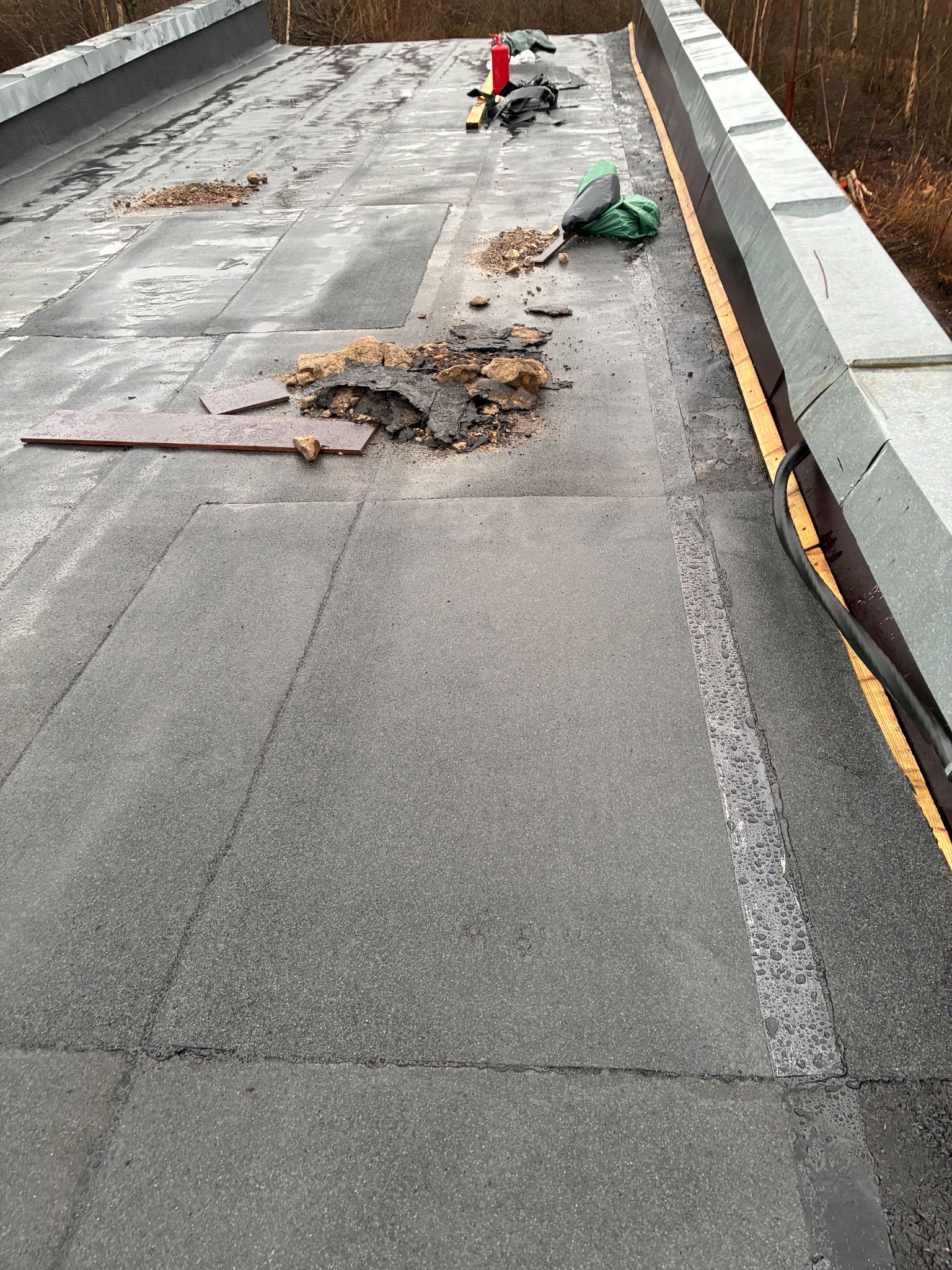

| 04 | New SBS membrane, upstands and galvanized details installed | Completed |
The existing flat roof was cleaned and levelled. Redundant roof equipment, cables and steel structures were removed. Waterproof plywood formed a reliable substrate at parapets, eaves and rebuilt ventilation locations before the SBS system was installed.

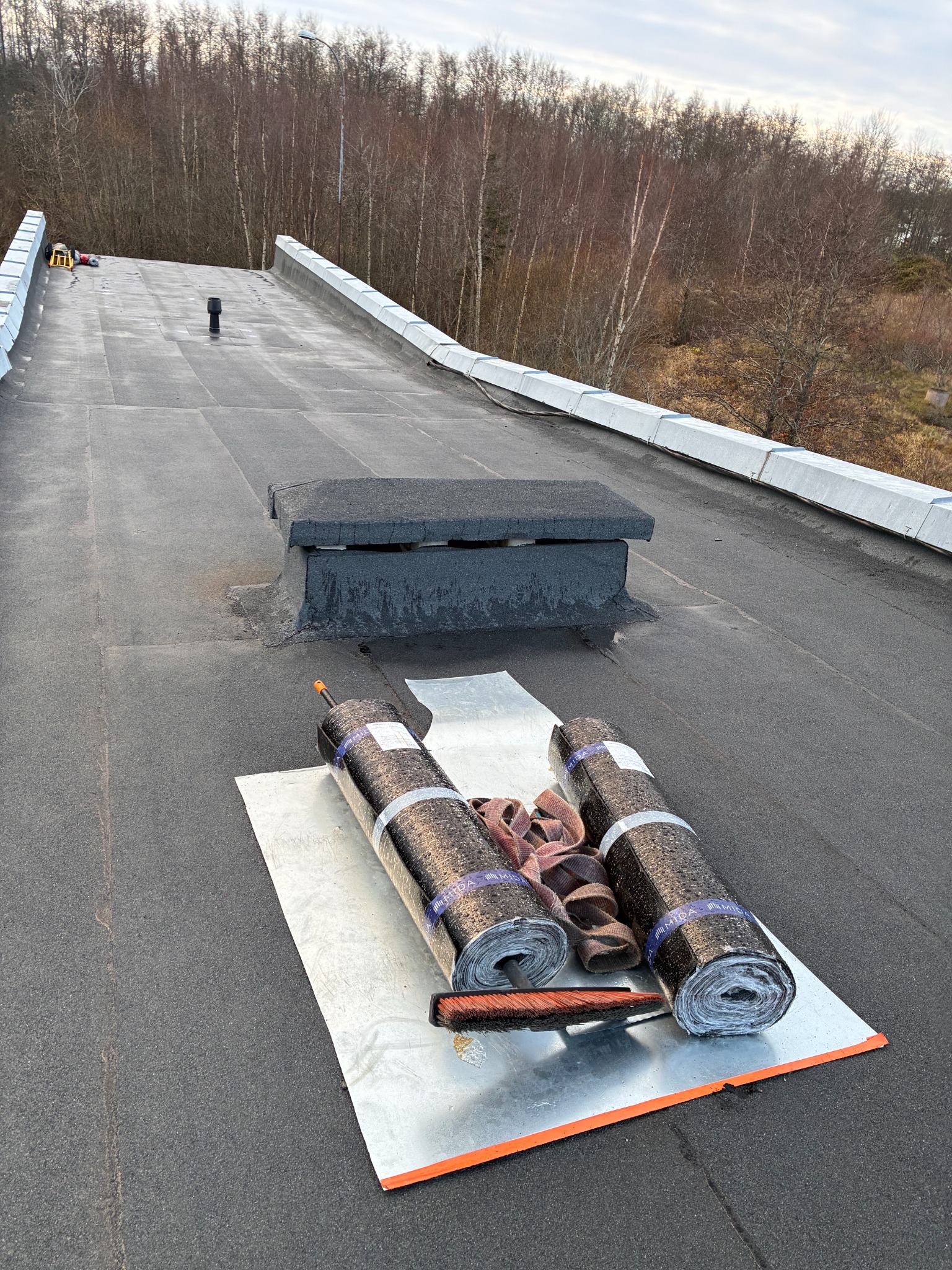

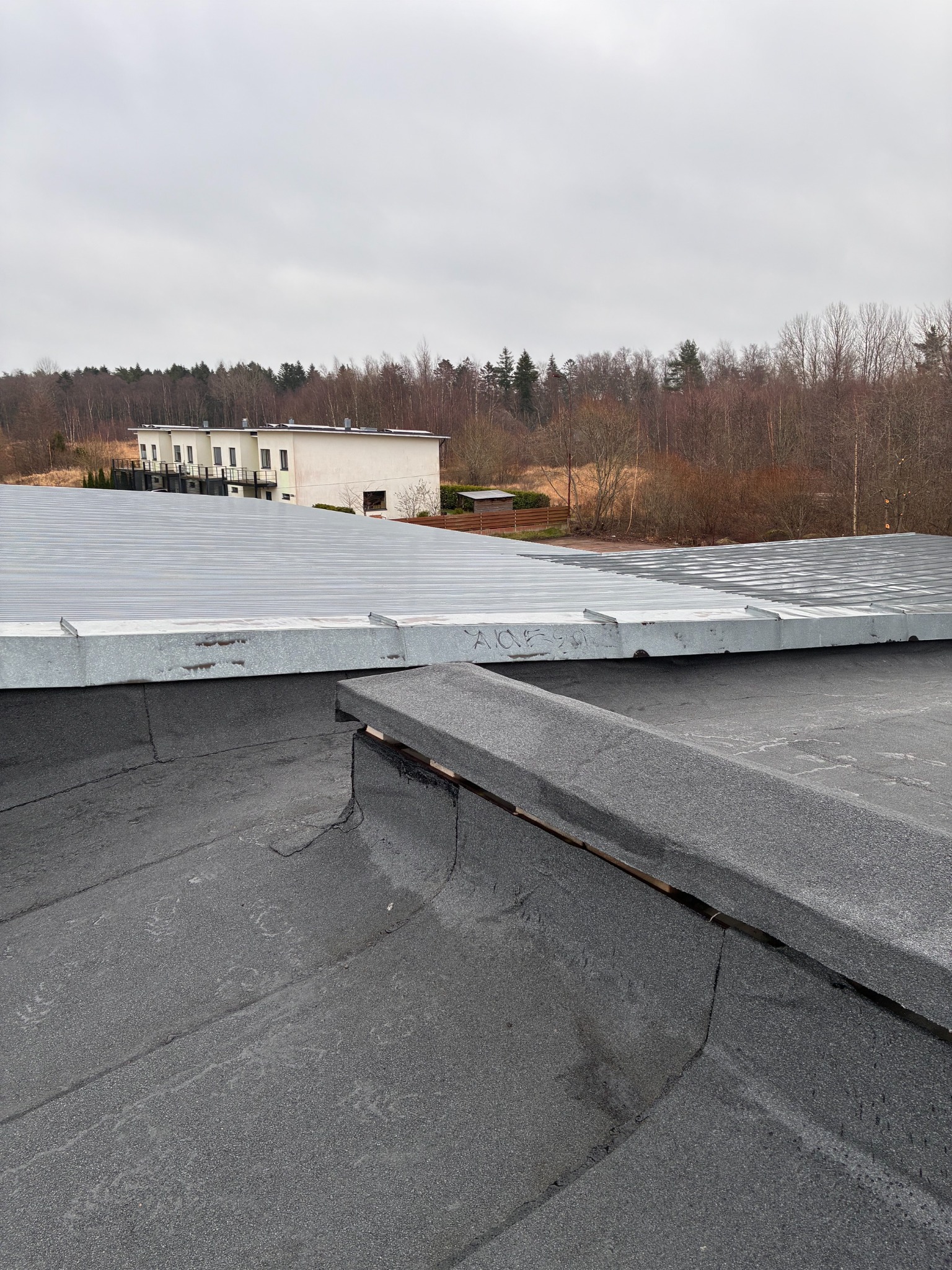

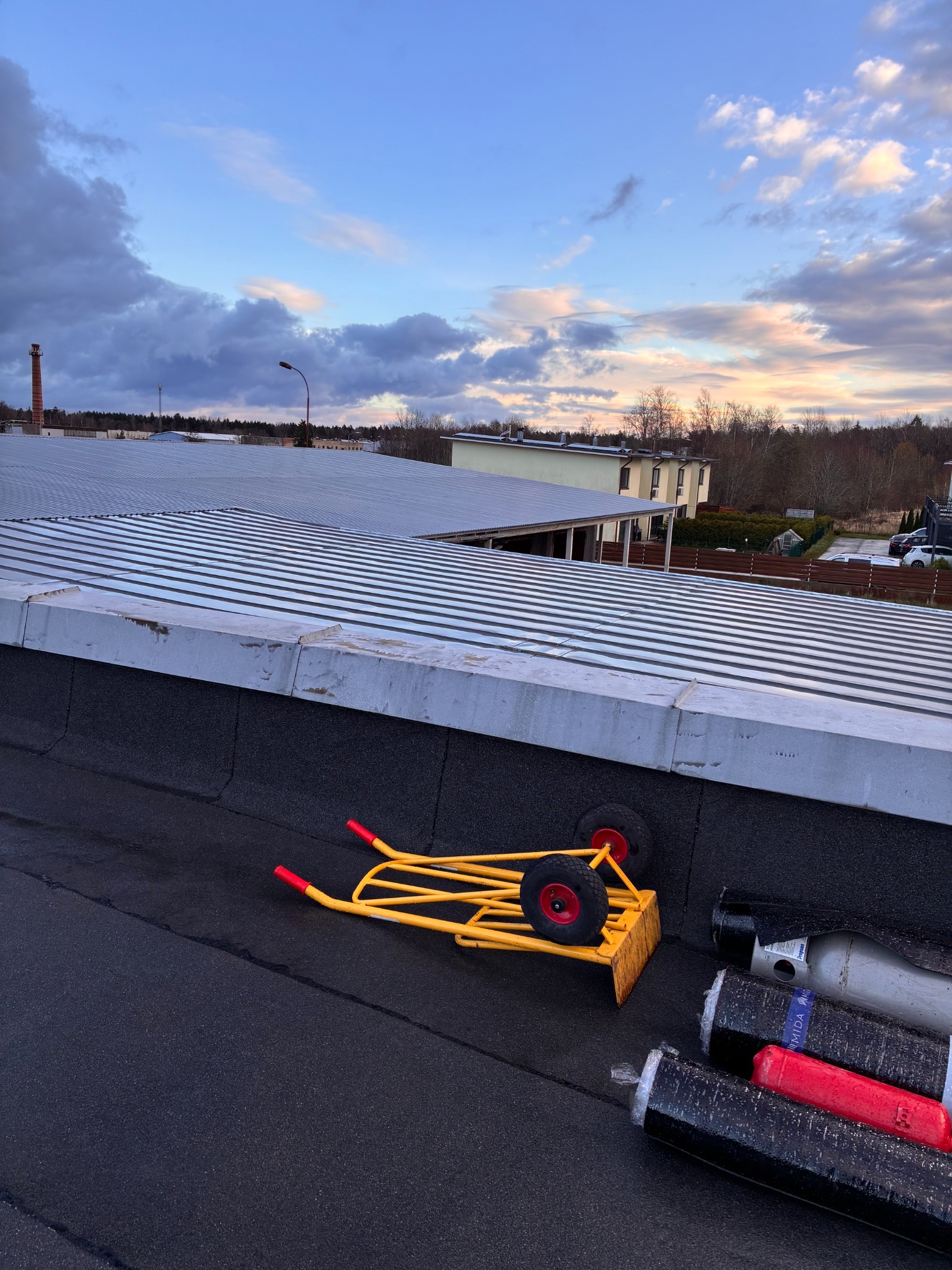

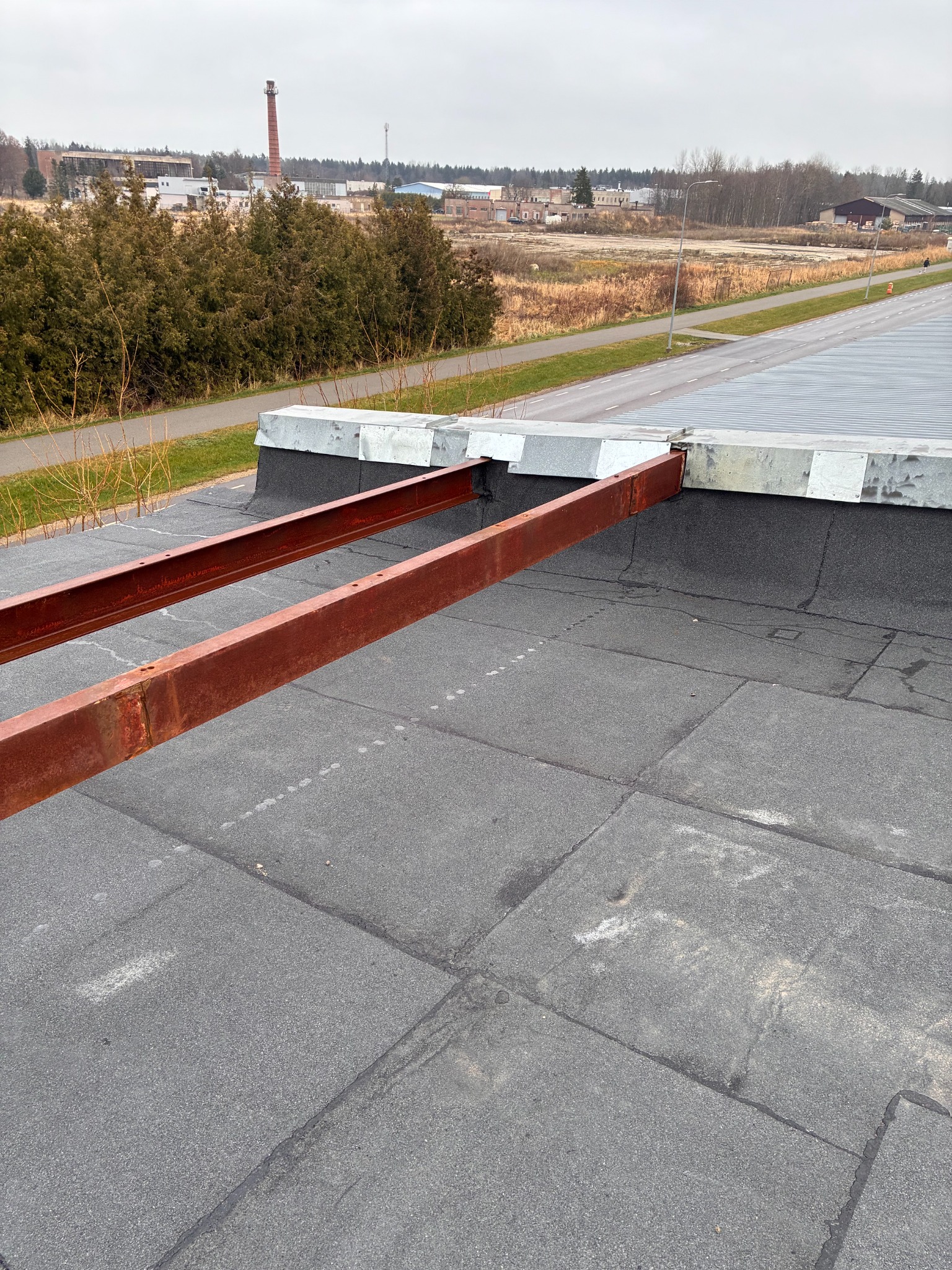

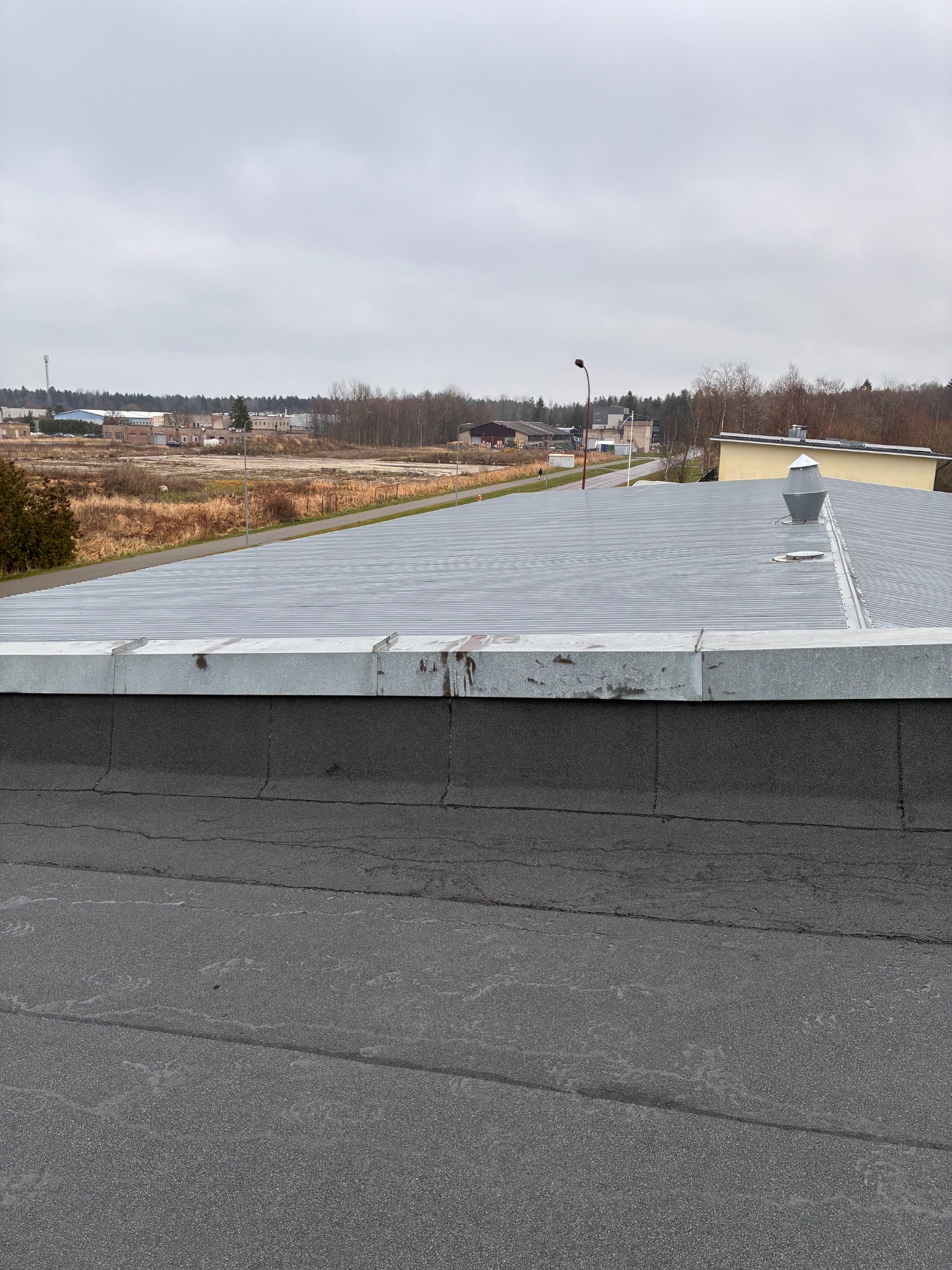

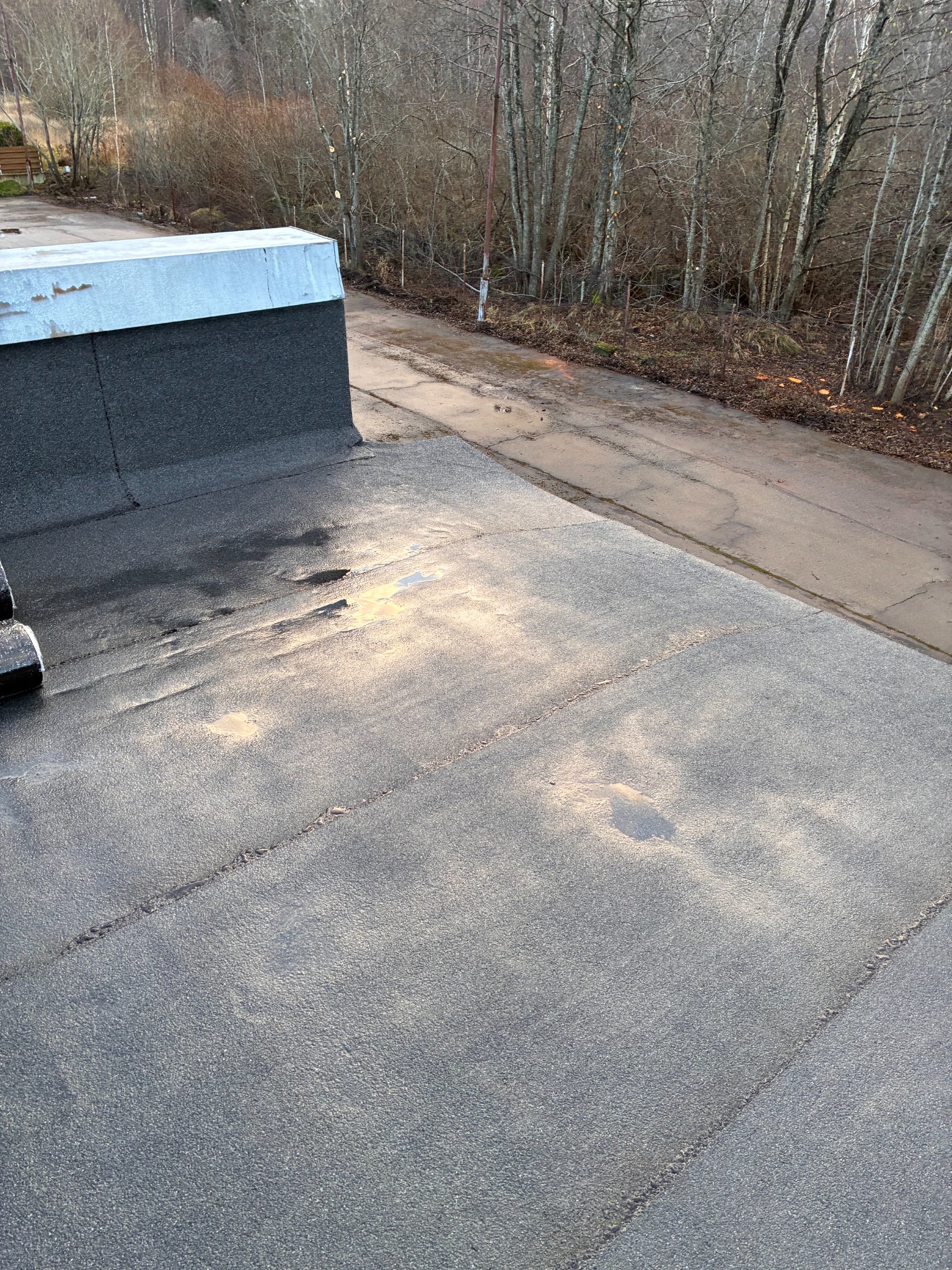

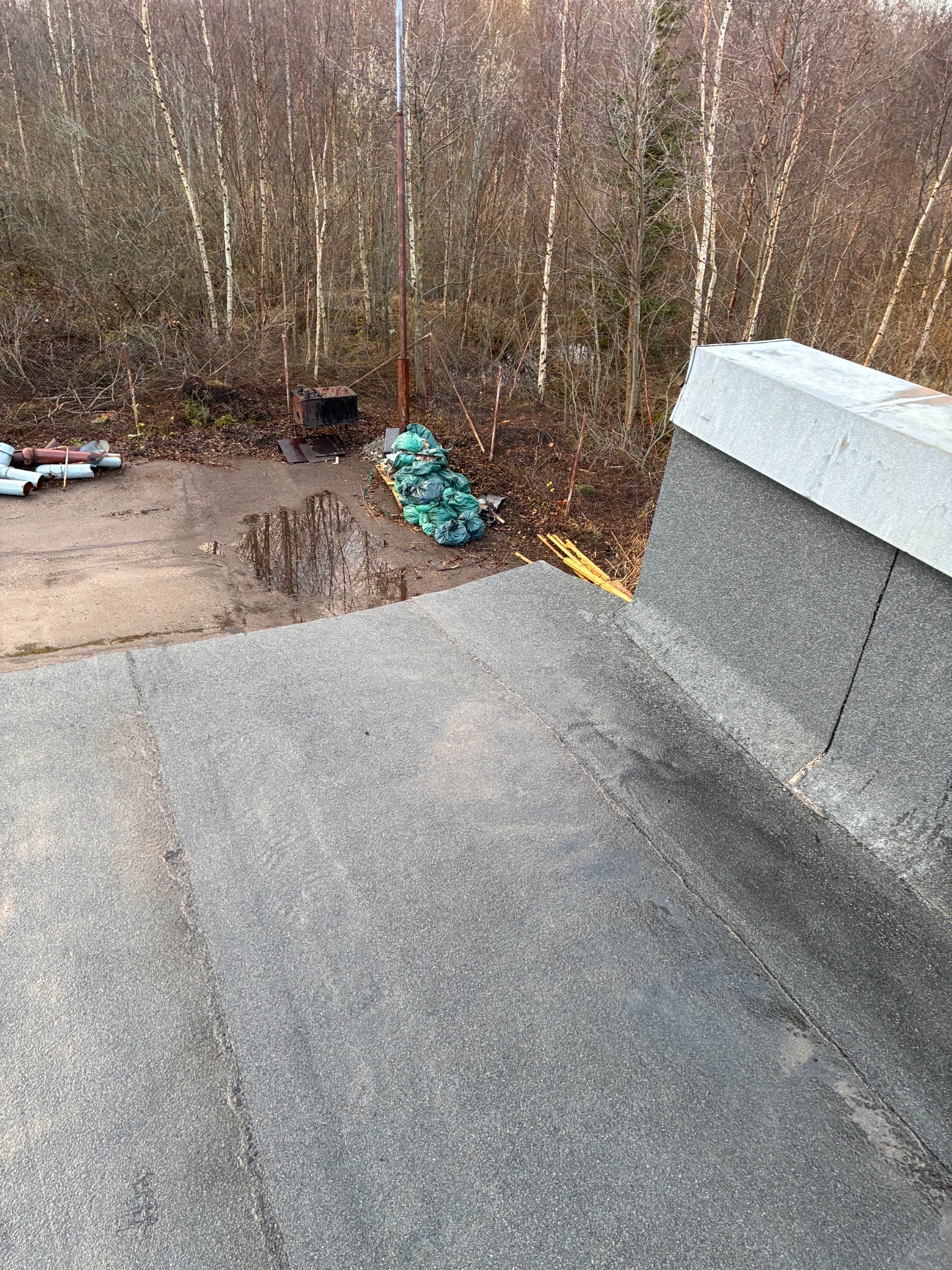

The completed roof is documented through critical weatherproofing details: parapet flashings, ventilation penetrations, triangular fillets, chimney caps and clean SBS junctions.
Reinu tee 8 records a complete SBS roof renovation in Pringi küla: prepared substrate, rebuilt junctions and a sealed waterproofing system designed for long-term service.
